EN - 13

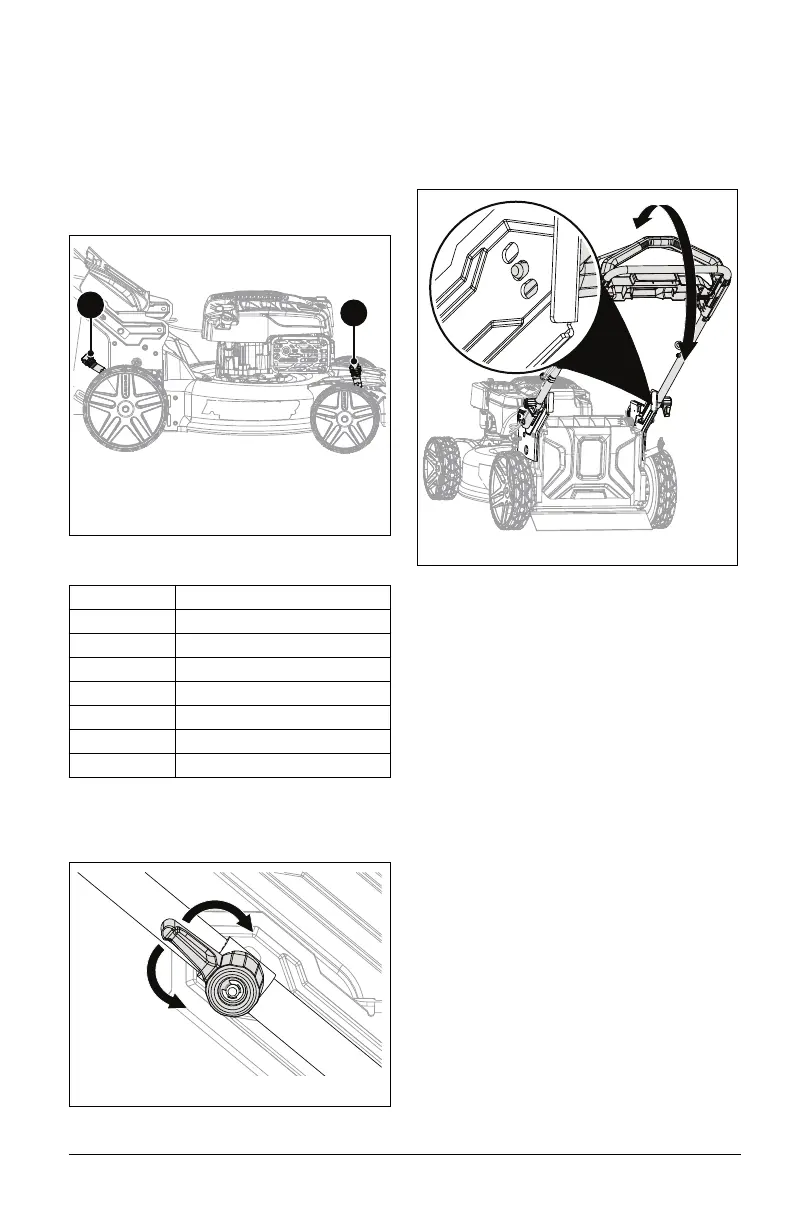

ADJUST CUTTING HEIGHT
1. Stop engine and wait for all moving parts
to stop and for hot parts to cool.
2. Pull HOC adjustment lever out of notch
and rotate lever to desired height setting.
Repeat on second adjustment lever. See
Figure 12.
IMPORTANT: Set both HOC levers to the
same setting.
CUTTING HEIGHT SETTINGS
ADJUST HANDLEBAR HEIGHT
1. Rotate handlebar adjustment knobs 1/4
turn up or down. See Figure 13.
See Figure 14.
2. Position handlebar at desired height.
3. Align handlebar with desired mounting
holes.
4. Return adjustment knobs to operating
position. Ensure pins are secure in
brackets.
Notch Desired Grass Height
1 2.5 cm (1.0")
2 3.8 cm (1.5")
3 5.0 cm (2.0")
4 6.4 cm (2.5")
5 7.6 cm (3.0")
6 8.9 cm (3.5")
7 10.2 cm (4.0")
Figure 12
1. Front HOC Lever
2. Rear HOC Lever
1
2
Figure 13
Figure 14
