Ariens Sno-Thro Compact Series User Manual

EN - 10

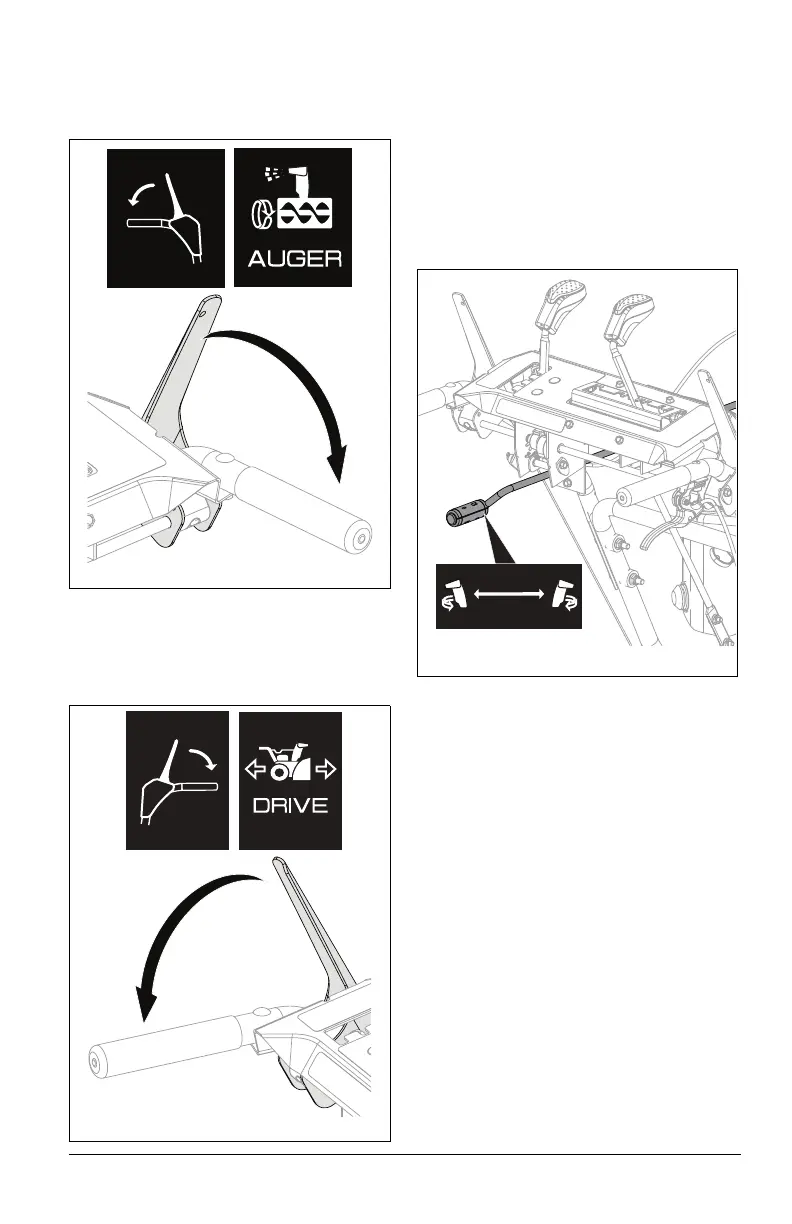

ATTACHMENT CLUTCH LEVER
(RIGHT SIDE)
See Figure 8.
Controls auger / impeller movement.
TRACTION DRIVE CLUTCH
LEVER (LEFT SIDE)
See Figure 9.
Allows unit to travel forward and in reverse.
DUAL HANDLE INTERLOCK
Allows auger / impeller to rotate without
holding attachment clutch lever continuously.
Auger continues to turn until both clutch
levers are released.
DISCHARGE CHUTE ROTATION
LEVER
See Figure 10.
Rotates discharge chute left or right to control
snow discharge.
Figure 8
Figure 9
Figure 10
