ADJUST HEIGHT-ADJUSTMENT
CABLE
Model 920028
See Figure 39.
NOTICE: Make sure height adjuster lock
finger is fully engaged before making
adjustments.
1. Loosen jam nuts on cable adjustment
barrel.
2. Tighten right jam nut to remove slack
between adjustment barrel and cable
eyelet.
3. Tighten left jam nut.

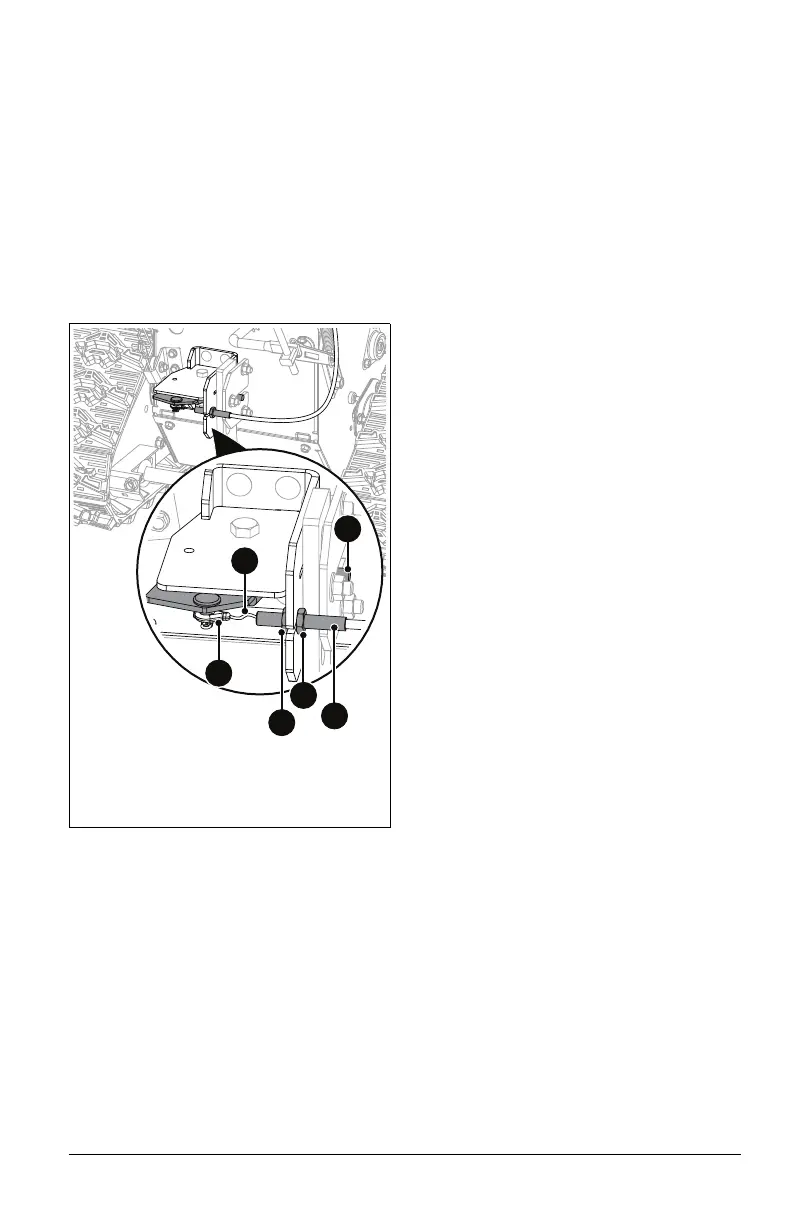

Figure 39
1. Lock Finger
2. Right Jam Nut
3. Left Jam Nut
4. Adjustment Barrel
5. Cable Eyelet
6. Cable Slack
1
6
5
3
2
4
