5. Reconnect spark plug wire.
ADJUST TRACK TENSION
Model 920028
1. Check tension by applying pressure to
track between the upper and rear track
rollers. Deflection should be
approximately 9.5 mm (3/8"). See
Figure 37.
2. Adjust tension as needed with track
adjusters. Tighten nut to increase tension;
loosen nut to decrease tension. See
Figure 38.
If unit does not travel correctly, adjust track
tension. See Figure 38.
• If unit pulls to the left, tighten the left track
adjuster.
• If unit pulls to the right, tighten the right
track adjuster.

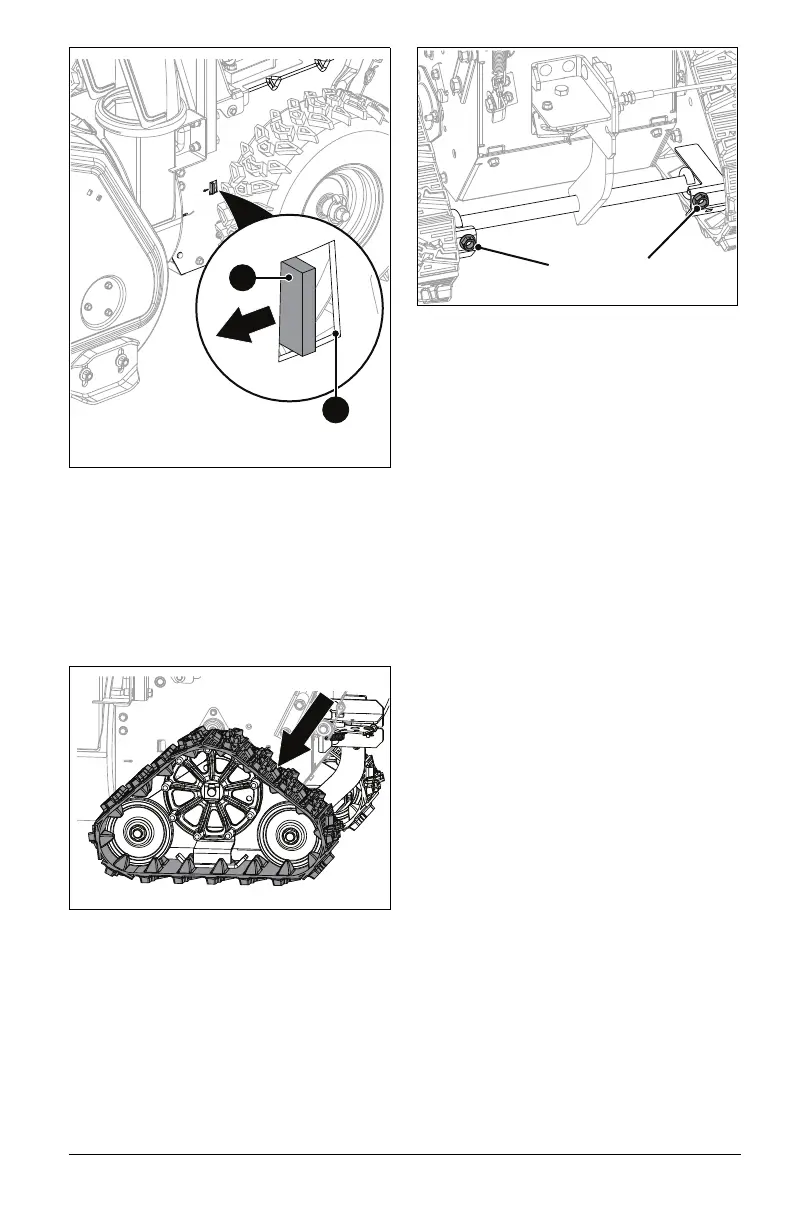

Figure 36
1. Swing Gate Tab
2. Stop Hole
1
2
Figure 37
Apply pressure here.
