ADJUST DISCHARGE CHUTE
See Figure 27.
If discharge chute does not stay in selected
position, tighten nut on carriage bolt.
ADJUST SPEED SELECTOR
LEVER
See Figure 28.
1. Disconnect adjustment pivot pin from
speed selector arm. Save hardware for
reinstallation.
2. Position speed selector lever in fastest
forward position.
3. Turn speed selector arm down as far as it
will go.
4. Models 920025, 920026, 920027:
Thread adjustment pivot pin along shift
rod until it aligns with the mating hole on
the speed selector arm, and then turn it
up the shift rod 7 turns. Insert pivot pin
into the hole.
5. Model 920028: Thread adjustment pivot
pin along shift rod until it aligns with the
mating hole on the speed selector arm,
and then turn it up the shift rod 3 turns.
Insert pivot pin into the hole.
6. Connect pivot pin to speed selector arm
with hardware removed in step 1 and
check forward and reverse speeds.
a. Start unit, position speed selector
lever in the first forward position and
engage traction drive clutch. Unit
should move forward.
b. Stop unit, position speed selector
lever in the first reverse position and
engage traction drive clutch. Unit
should move in reverse.
c. Stop unit. If unit does not travel
correctly, repeat adjustments.

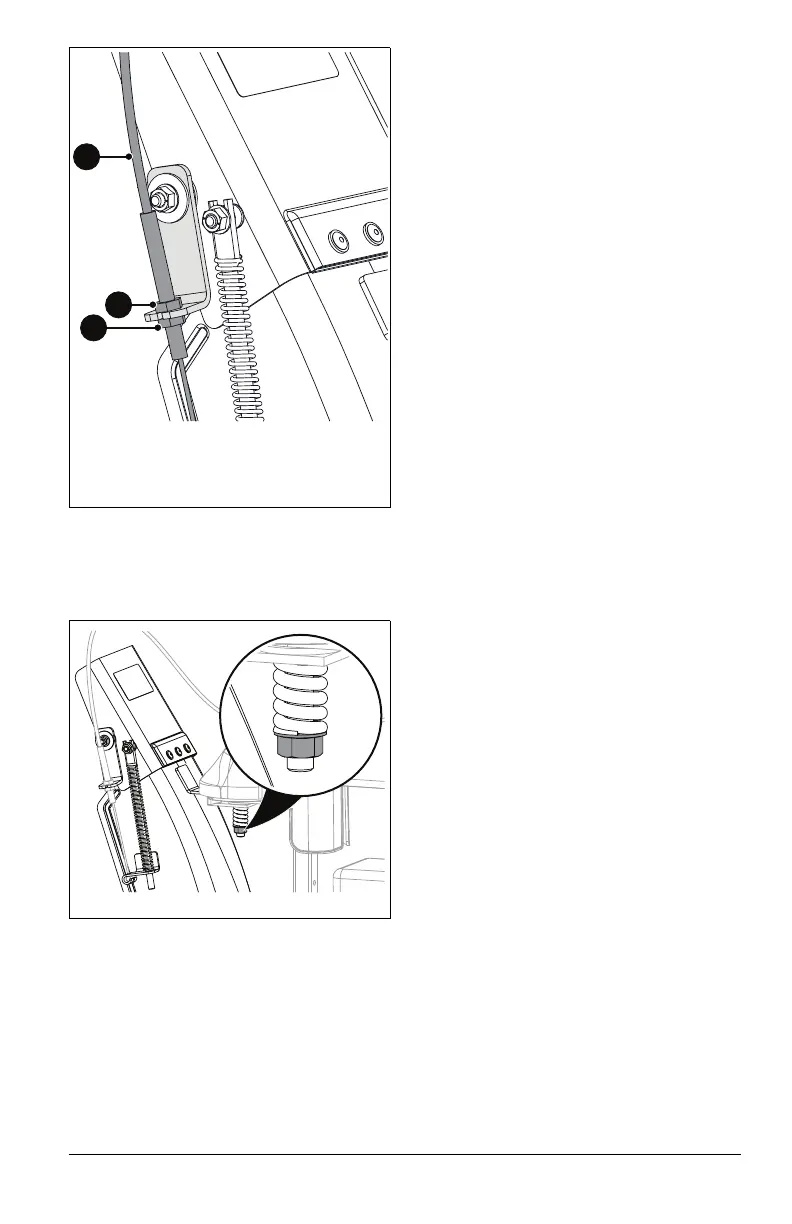

Figure 26
1. Chute Cable
2. Upper Adjustment Nut
3. Lower Adjustment Nut
1
3
2
