EN - 22
Check Belt Finger Clearance
See Figure 34.
With attachment clutch engaged, the belt
finger located opposite the belt idler must be
less than 3.2 mm (1/8") from belts, but must
not touch the belts.
To adjust belt finger:
1. Remove belt cover.
2. Loosen bolts and move belt finger to
correct position.
3. Tighten bolts and recheck belt finger
clearance.
4. Reinstall belt cover and tighten hardware.
ADJUST TRACTION DRIVE
CLUTCH
See Figure 35.
If unit does not drive correctly, adjust traction
clutch to compensate for friction disc wear.
1. Stop engine, remove key and wait for all
moving parts to stop and for hot parts to
cool.
2. Disconnect spark plug wire.
3. Loosen jam nut on traction cable
adjustment barrel, and then turn
adjustment barrel down to shorten cable
and remove cable slack.
4. With traction clutch disengaged, check
that swing gate tab touches the front edge
of stop hole. See Figure 36.
IMPORTANT: Swing gate tab MUST touch
stop hole edge. Readjust cable as necessary
until tab touches stop hole edge.

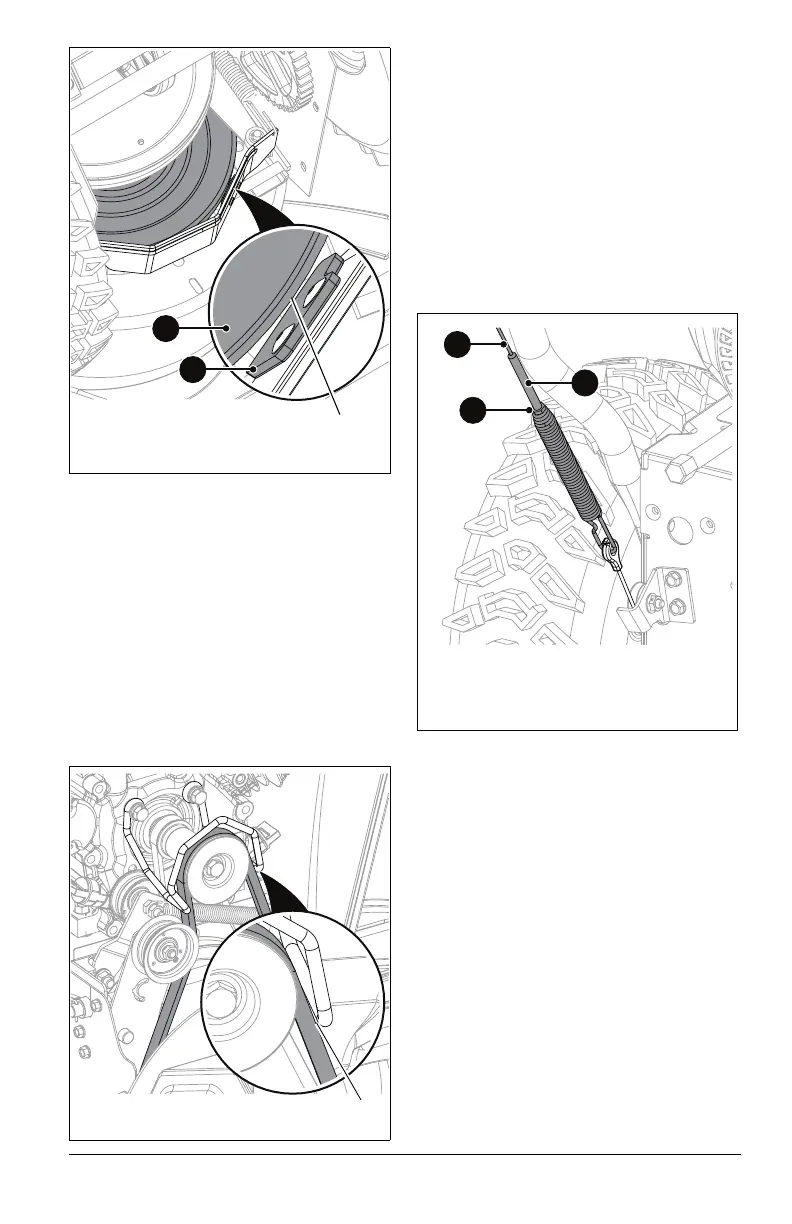

Figure 33
1. Brake Pad
2. Attachment Pulley
1
2
Measure
here.
Figure 35
3
2
1
1. Traction Drive Clutch Cable
2. Cable Adjustment Barrel
3. Jam Nut
