EN - 11
DISCHARGE CHUTE DEFLECTOR
LEVER

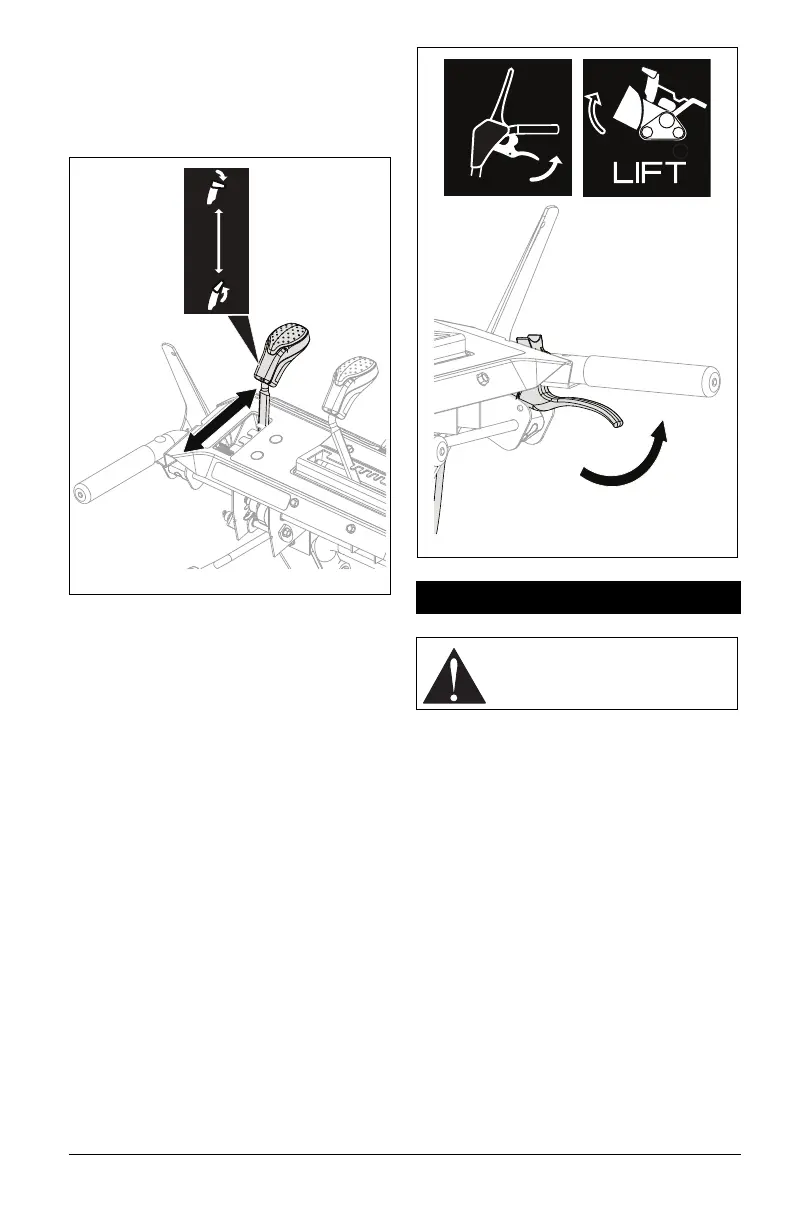

See Figure 11.
Moves discharge deflector up or down to
control height of snow discharge.
SCRAPER BLADE
Contacts the surface being cleared and
protects the housing from damage during
normal use.
SKID SHOE
Controls the distance between the scraper
blade and the surface.
AXLE LOCK PIN
Models 920025, 920026, 920027
Engages or disengages wheels with axle
rotation, allowing for wheel drive or
freewheeling. See Set Axle Lock Pin on
page 12.
HEIGHT ADJUSTMENT LEVER
(RIGHT SIDE)
Model 920028
See Figure 12.
Raises or lowers auger housing for various
snow-clearing situations.
IMPORTANT: All references to left, right, front
or rear are given from the perspective of
operator in operator’s position, facing the
direction of forward travel.
EMERGENCY STOPPING
1. Release both clutch levers.
2. Turn engine key to stop position and
remove key.
3. Wait for all moving parts to stop before
leaving operator’s position.
BEFORE OPERATING UNIT
1. Check for a frozen impeller.
a. Turn engine key to stop position and
remove key.
b. Engage attachment clutch lever and
pull recoil starter handle.
c. If handle does not pull, move unit to a
warm area to thaw.
2. Check fuel level and add fuel if needed.
OPERATION
WARNING: AVOID INJURY.
Read and understand the Safety
section before proceeding.
