Installation manual for the CD72/95/15003 Page 11
PROGRAMMING GUIDE
1. Take some time to become familiar with the overview of the programming maps which can be found
at the end of this manual.
2. Any programming changes made may not take effect until you exit programming mode.
3. If while programming an option the message “No Privilege” is displayed, the configuration is “Split
System” and you do not have access to all the areas. This may be caused by not obtaining
“Extended Access” (Maintenance menu), or because one or more of the areas are armed.
4. The following keys may be used:
Always enter a ‘0’ before entering an
engineer/user code to prevent errors !
Under keys 1 to 9 there are 3 letters of the
alphabet: press the keys repeatedly to enter first
the number, then the lower case letters and then
the upper case letters. Keys 9 and 0 have special
symbols such as the comma and space.
The arrows move the cursor during entry.
Press ‘üü’ to accept an entry.
Cancel an entry by pressing ‘X’.
To delete a character, overwrite with another
character or a space.
Note: CD30xx stands for the keypads:
CD3008, CD3048, CD3009 and CD3049
ABC
1
DEF
2
GHI
3
JKL
4
MNO
5
PQR
6
STU
7
VWX
8
YZ
9
Cursor left
á
0
Cursor right
down up
End
Accept

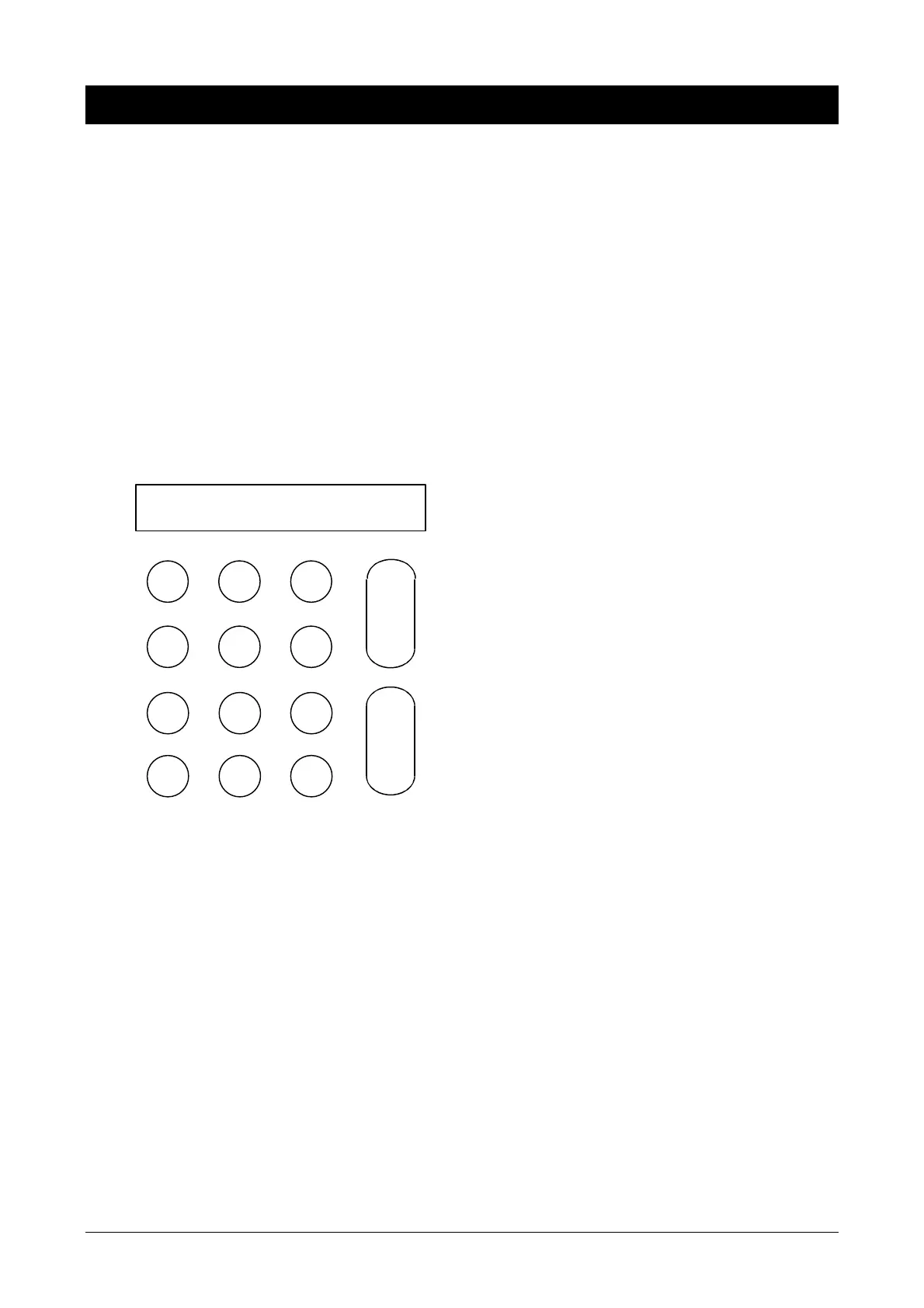

Figure 4. Keys on a CD30xx
To Next Page
