Aritech ADVISOR CD 7203 Installation Manual

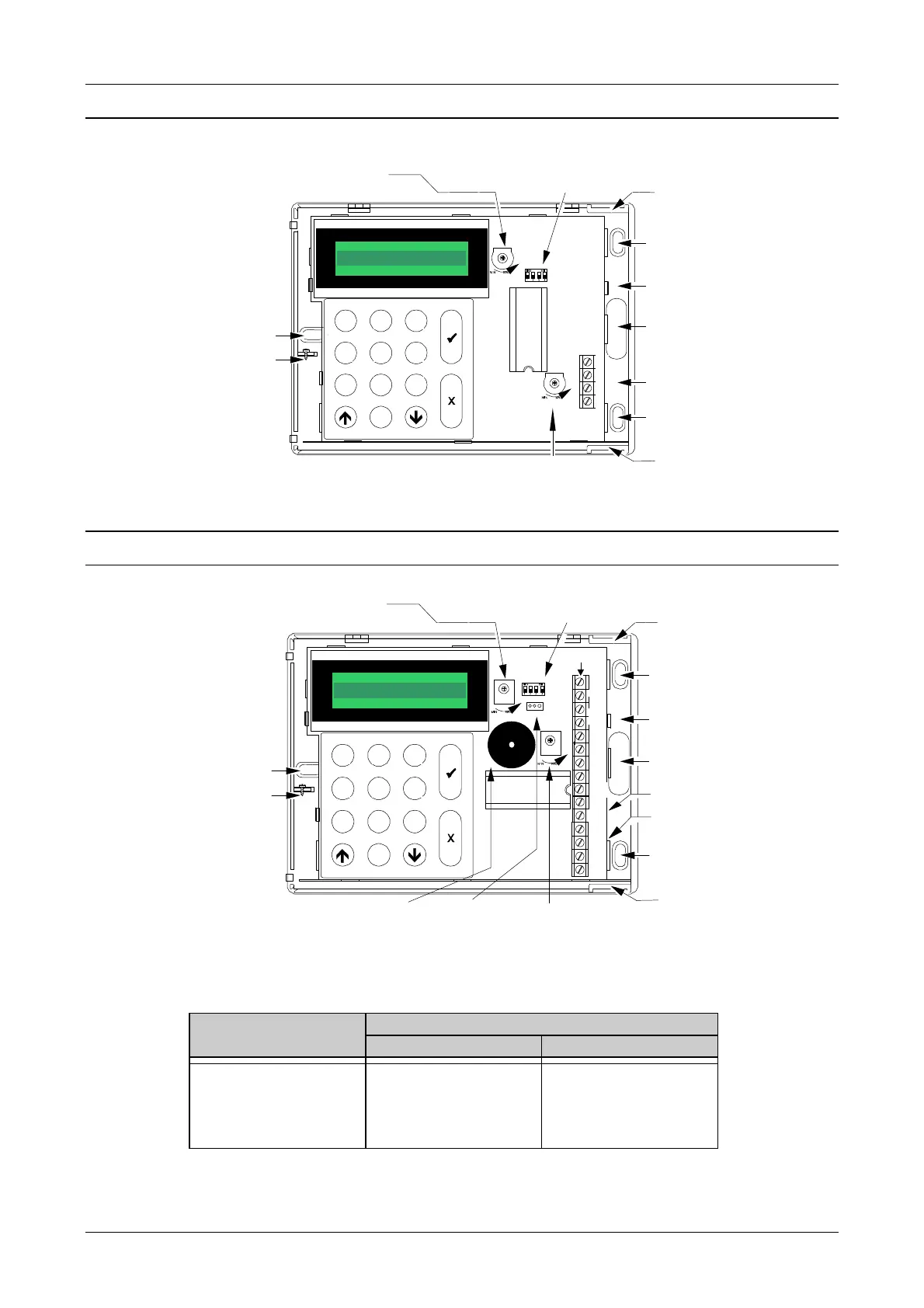

Installation manual for the CD72/95/15003 Page 19
CD3008 / CD3009 KEYPAD
Display contrast
adjustment
Keypad address
setting switches
Cable entry from
top
Fixing hole
Push the side clip
to remove PCB
Cable entry from
back
Cable entry from
bottom
Fixing hole
Fixing hole
Extra screw to
secure lid
1 2 3
4 5 6
7 8 9
0
D
C
B
A
4-wire bus
connection
Buzzer volume adjustment
Figure 12. CD3008 / CD3009 keypad
CD3048 / CD3049 KEYPAD
Display contrast
adjustment
Keypad address
setting switches
Cable entry from
top
Fixing hole
Push side clip to
remove PCB
Cable entry from
back
Cable entry from
bottom
Fixing hole
Fixing hole
Extra screw to
secure lid
1 2 3
4 5 6
7 8 9
0
Four-wire bus
connection
D
C
B
A
Buzzer volume adjustment
Buzzer
2
1
4
3
OB
ON
Zones
-
+
Power connection
OFF
Jumper to cut
off Buzzer
Figure 13. CD3048 / CD3049 keypad
Remote Connection to
connections CD 7203 CD 9503/15003
A 38 50
B 37 49
C 36 48
D 35 47
