Aritech ADVISOR CD 7203 Installation Manual

Installation manual for the CD72/95/15003 Page 23
CONNECTION OF A DETECTOR WITHOUT MEMORY
Input zone
Power supply
4k7 4k7
S
S
A
A
7654321

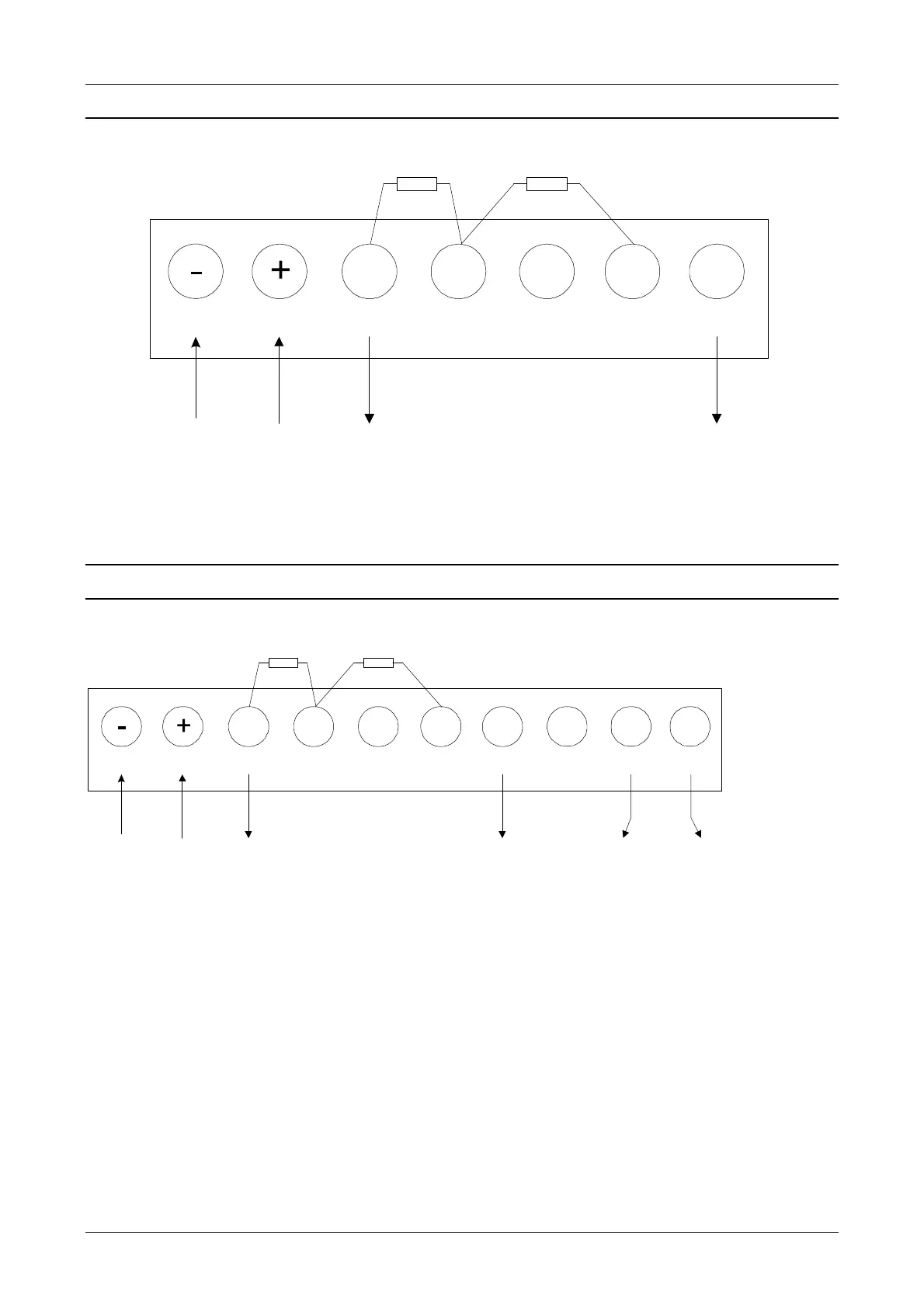

Figure 16. Dual loop connection of a detector without memory
CONNECTION OF A DETECTOR WITH LATCH
Power supply
Input zone
Output
“Latch”
Output “Walk
test”
M
W
S
S
A
A
4k74k7
1 2 3 4 5 6 7 8 9 10
Figure 17. Dual loop connection of a detector with latch
Note: Before connecting, the cable between terminal 2 and terminal 10 should be removed!
