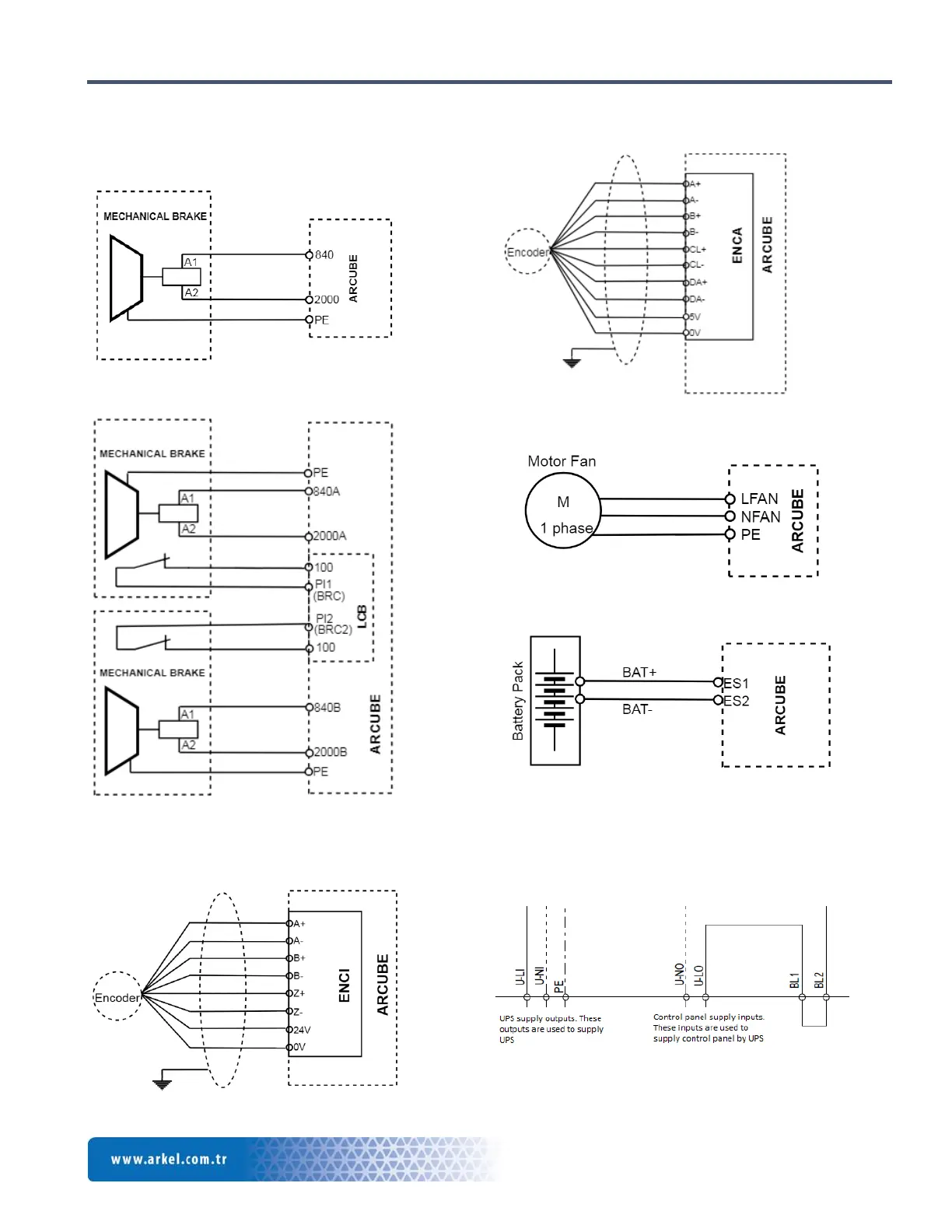

2.3 Mechanical Brake Connections
2.3.1 Asynchronous motor brake connections
2.3.2 Synchronous motor brake connections
2.4 Encoder Connections
2.4.1 Asynchronous motor encoder connections
2.4.2 Synchronous motor encoder connections
2.5 Motor Fan Connection
2.6 Battery Pack Connection (If necessary)
2.7 UPS Connection
If you do not have UPS, you must bridge connectors U-
LI with U-LO and U-NI with U-NO using with suitable
cables. Otherwise you can’t run the system.
* For BL1-BL2, look at your distribution panel.
