3. Menu
When the system is energized, ARCUBE screen on the
motor driver will be displayed. In order to enter the menu
YELLOW button “ENT”, to exit from the menu RED
button “ESC” are used. You can scroll through
parameters with “UP”, “DOWN” buttons. As you are on
the parameter you wanted to enter inside, after pressing
“ENT” button, you can go to the different values and
options in the parameter by using “UP”, “DOWN”
buttons.

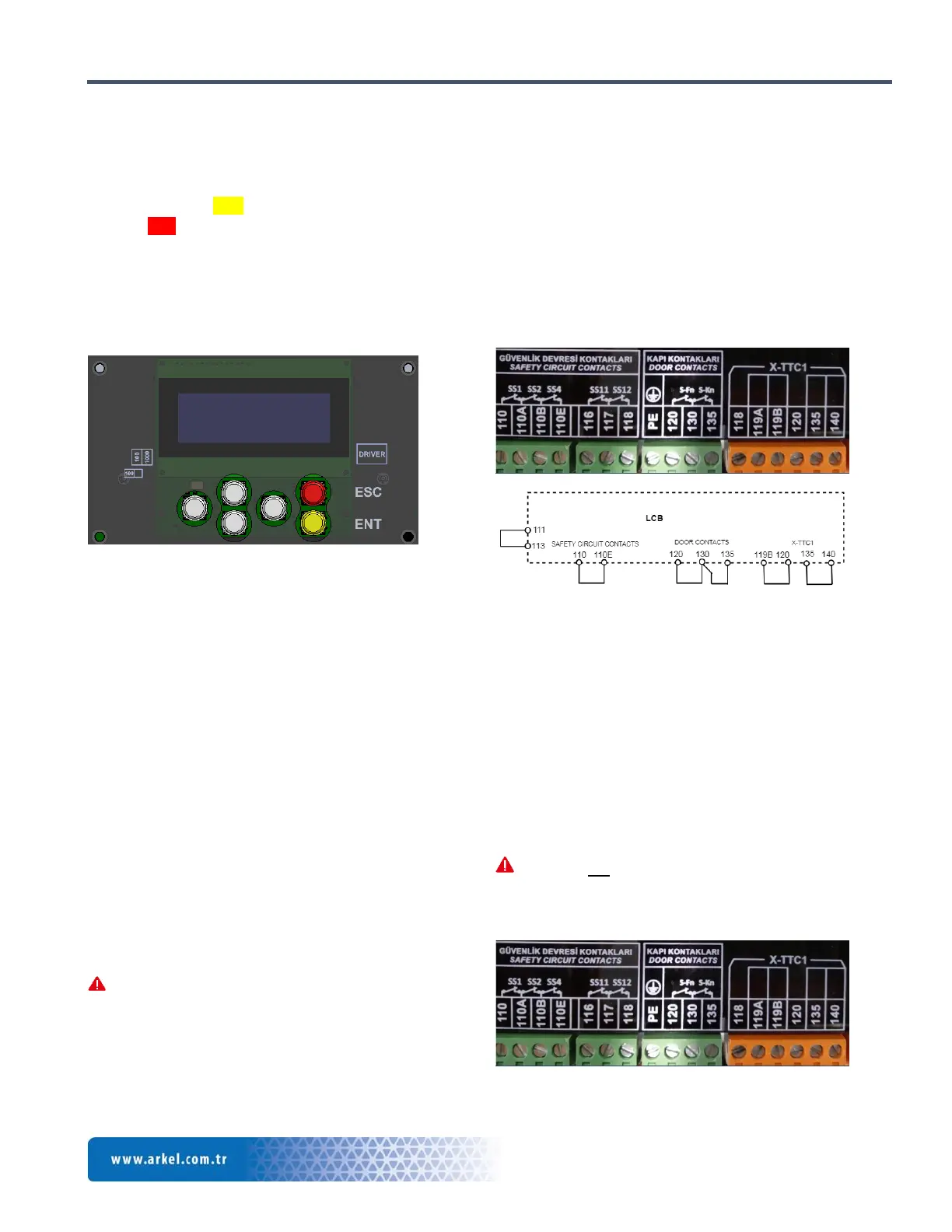

Figure 3 Menu
4. Auto Tuning
Before the lift is run, auto tuning process must be
performed. The characteristic of motor is learned during
the auto tuning process. Since the auto tuning is
performed with hand terminal, recall hand terminal key
should be activated. ARCUBE unit should be energized
for performing of auto tuning.
➢ Connect the mains supply of unit. (L1, L2, L3, N,
PE)
4.1 Auto Tuning Preparation
While performing autotune, the required bridging will be
different depending on if car top and pit inspection is
connected in the system or not. Therefore, it is so
important to choose the correct parameter from the menu.
“OPERATION MODE” parameter under “QUICK
INSTALLATION” must be definitely set correctly.
4.1.1 Car top and pit inspection not connected
In the first installation, if the auto tuning is performed as
“car top and pit inspection not connected”, from the
parameter;
“OPERATION MODE” “INSTALLATION MODE”
“WITHOUT INSPECT BOX”
must be chosen. In the case of wrong choice, Arcube
would not communicate with Fx-Cube board and raise an
error. The required safety circuit bridging must be as
shown in Figure 4.
Figure 4 Required bridging when the car top and pit
inspection not connected
4.1.2 Car top and pit inspection connected
If the auto tuning is performed as “car top and pit
inspection connected”, from the parameter;
“OPERATION MODE” “INSTALLATION MODE”
“WITH INSPECTION BOX”
must be chosen. The choice of this parameter is
important. If it is set wrongly, 817, 818, 868 and 869
signals will be ignored by ARCUBE. The required safety
circuit bridging must be as shown in Figure 5.
There must not be bridge between 119B-120 and 111-
113. In this step, if it is assumed that the doors are not
mounted, only the doors (120-130-135-140) will be
bridged.
