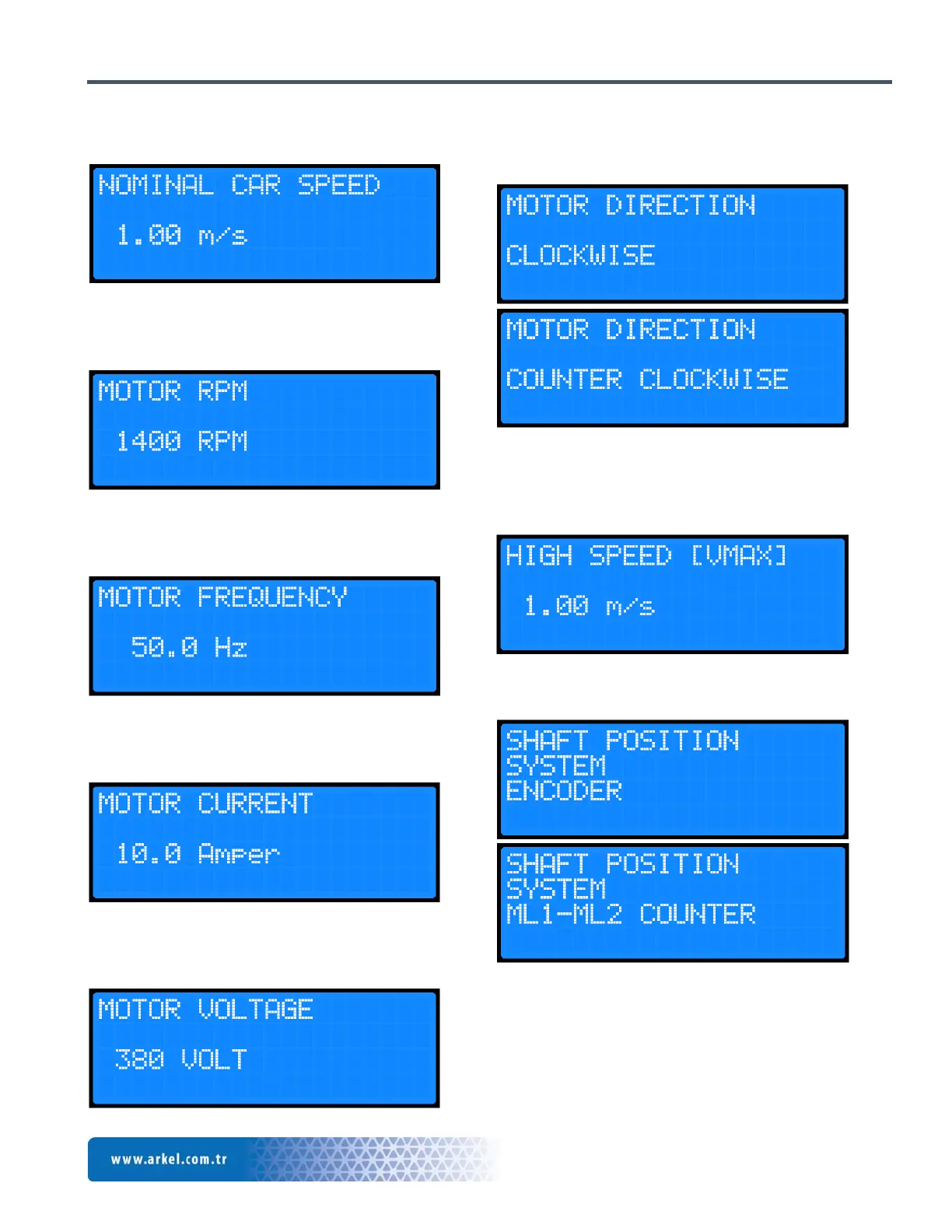

4.2.4 Nominal car speed
This is the speed value what motor label shows.
4.2.5 Motor rpm
Motor revolution per minute (rpm) value must be entered
correctly as shown in the motor label.
4.2.6 Motor frequency
Motor frequency value must be entered correctly as
shown in the motor label.
4.2.7 Motor current
Motor current value must be entered correctly as shown
in the motor label.
4.2.8 Motor voltage
Motor voltage value must be entered correctly as shown
in the motor label.
4.2.9 Motor direction
This parameter can be changed after completing auto
tuning if the direction of move is wrong.
4.2.10 High speed [Vmax]
This is the parameter which sets the max. speed the car
moves. The value of this parameter should be maximum
what the nominal motor speed is.
4.2.11 Shaft position system
Shaft positioning system must be entered here correctly.
4.2.12 Number of floors
The floor number of the system must be entered here
correctly.
