ARCUBE Quick Installation Guide
Version : V1.01

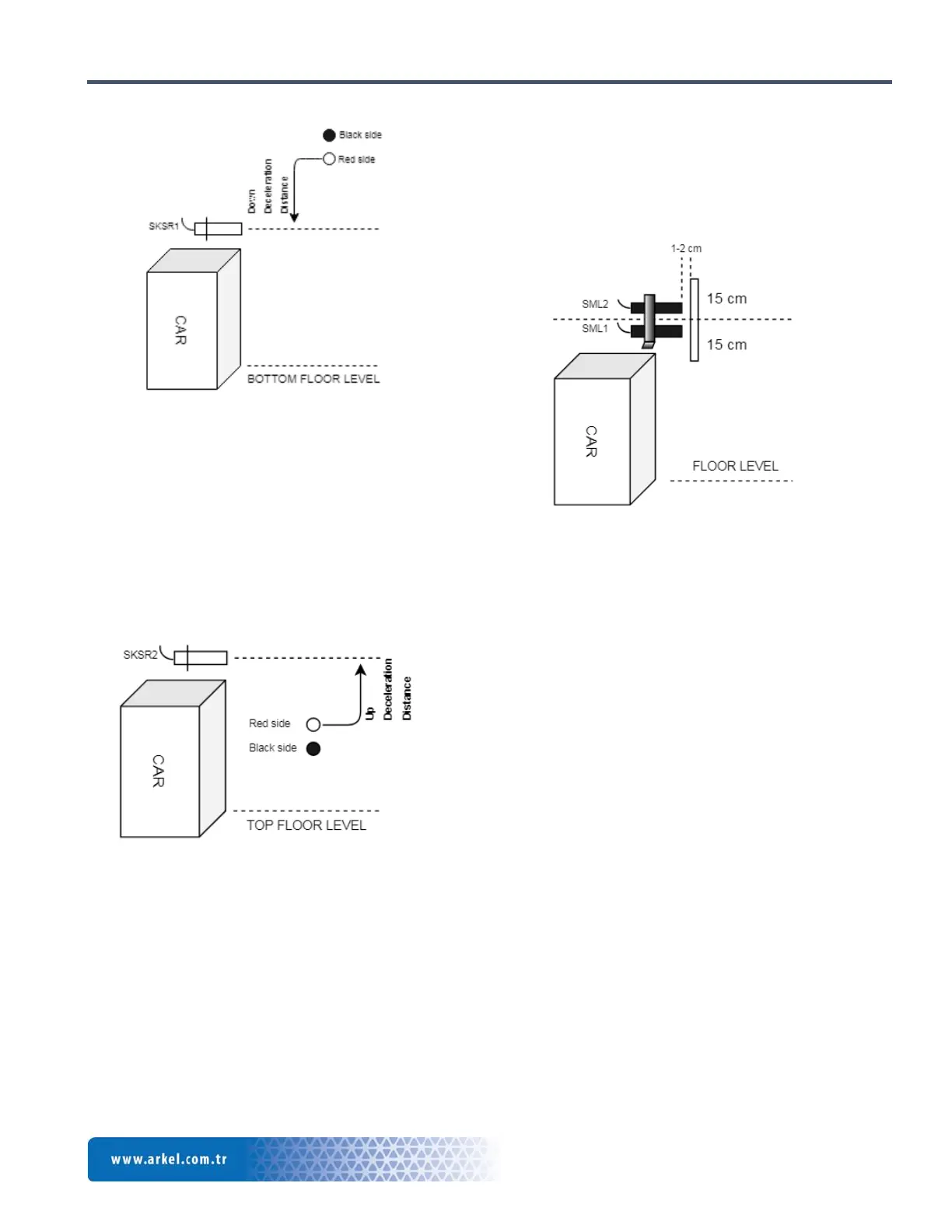

Figure 7 Installation of bottom round magnets for
SKSR1
Make the installation of round magnets for SKSR2
magnetic switch 2 m away from top floor door zone
magnet level. Connect the cables of SKSR2 magnetic
switch to 100 and 818 terminals located on FX-Cube
board.
The required round magnets for up deceleration magnetic
switch must be put according to the deceleration distance
as told below.
Figure 8 Installation of top round magnets for
SKSR2
Move the car to the top floor.
Car must be exactly at the top floor level.
Install round magnet with red color side below the
SKSR2 magnetic switch as deceleration distance.
Install the round magnet with black color side a little
below the red color magnet.
The distance between magnetic switch and magnets must
be 1-2 cm.
Make the installation of ribbon magnets for SML1 & SML2
door zone magnetic switches as shown the below figure. The
cables of magnetic switches must be connected ML1-MLO-
1000 and ML2-MLO-1000 terminals on Fx-Cube board
respectively.
Figure 9 Installation of Magnets for SML1-SML2
door zone sensors
Move the car to the bottom floor.
Car must be exactly at the bottom floor level.
Install the ribbon magnet opposite to the door zone
magnetic switches. The middle of the ribbon magnet
must be on a level with the middle of the magnetic
switches.
The distance between magnetic switches and magnet
must be 1-2 cm.
30 cm bar magnets must be fixed with screw or glue.
Repeat this installing operation at all floors.
6. Shaft Learning and Test Drive
In encoder car positioning systems, before going to
normal running operation, ARCUBE monoblock lift
control unit must learn the shaft to learn the car position
and shaft information. So, check the magnetic switches
and magnet installation, then check the encoder
connections. After checking that they are completely
correct, perform the shaft learning operation as told
below.
The system shouldn’t be in inspection or recall mode in
order to perform shaft learning. Otherwise, there will be
given a warning message in the screen.
