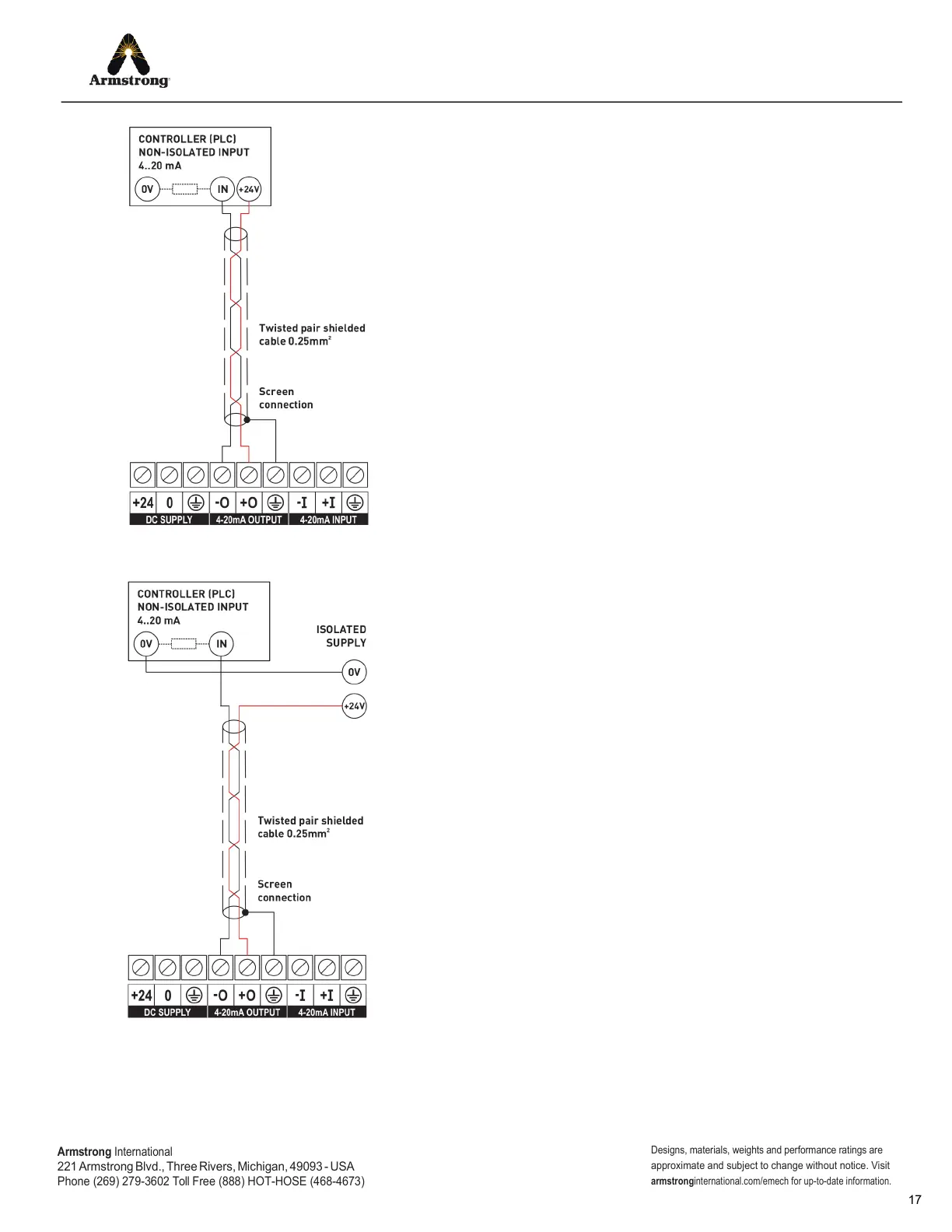

Figure 3.5
Controller with non-isolated 4-20mA loop input using the 24Vdc
supply from the controller or PLC itself.
(Recommended)
Figure 3.6
Controller with non-isolated 4-20mA loop input using the 24Vdc
supply from an external isolated supply.
This could possibly increase noise in the system and is therefore
not recommended.
