34
Designs, materials, weights and performance ratings are
approximate and subject to change without notice. Visit
armstrong
international.com/emech for up-to-date information.

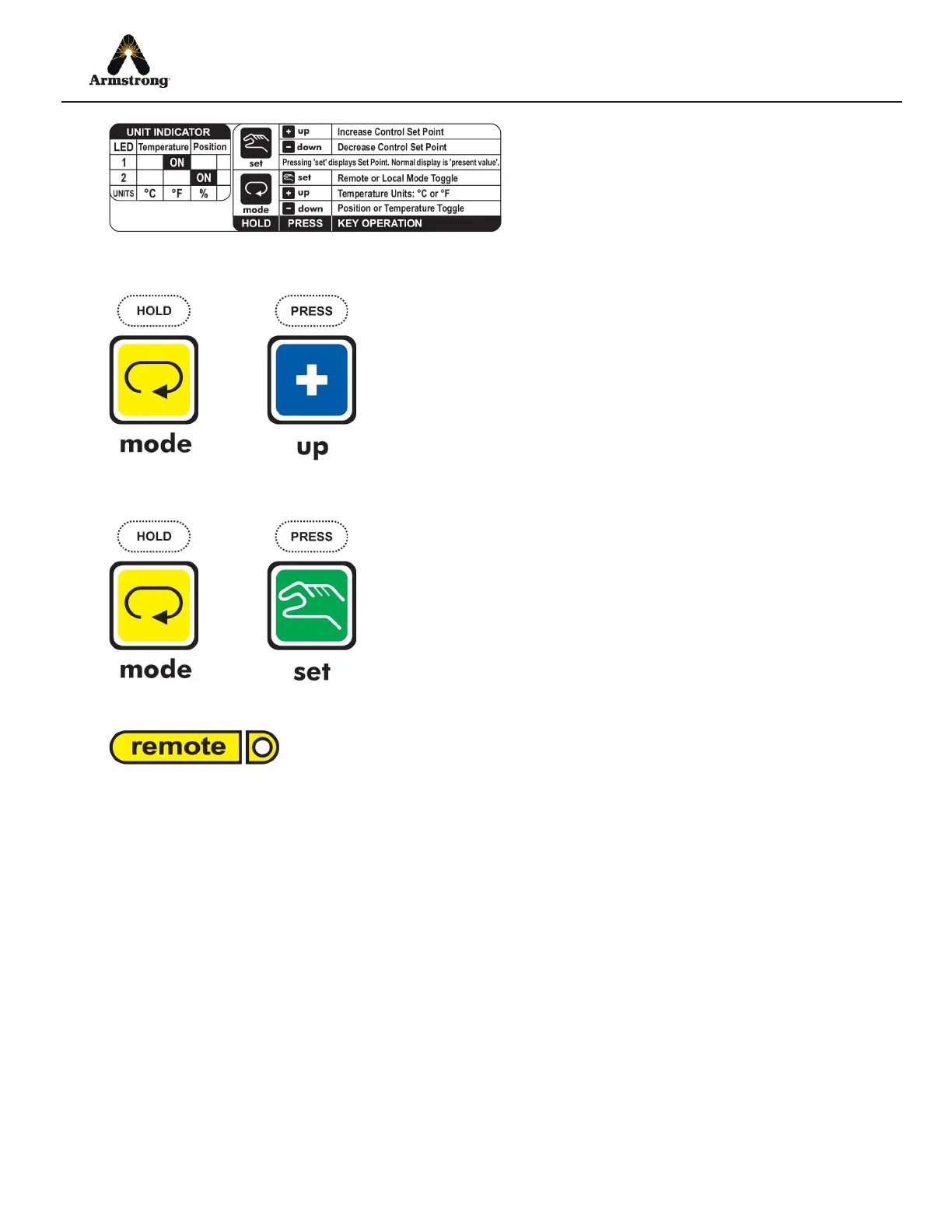

A key to these codes is displayed on a label
attached to the side of the actuator lid
above the control panel as shown left.
6.3 Controller Units Selection
Pressing mode + up (+) scrolls through the units displayed for the
current controller type.
Pressing mode + set toggles between local and remote when a
remote system is attached to the actuator.
The mode is displayed by the remote light. When NOT lit, the
actuator is in Local mode.
6.4 Remote & Local Control Toggle
