3.2.7 Serial Port Connector (Port-3)
The Actuator comes with a RS232 to USB adapter serial port cable part#
CPEL0091for modifying control options using the Emech Configuration,
The EmechConfig can be found on the Armstrong Website.
armstronginternational.com/emech
Caution: The Serial Port is intended for diagnostics
and configuration only and the length of cable for thi
connection should not exceed a distance of 10 meters.
The serial port is provided by means of a 4-pole M8 (female) connector
loctaed at the bottom of the actuator housing.

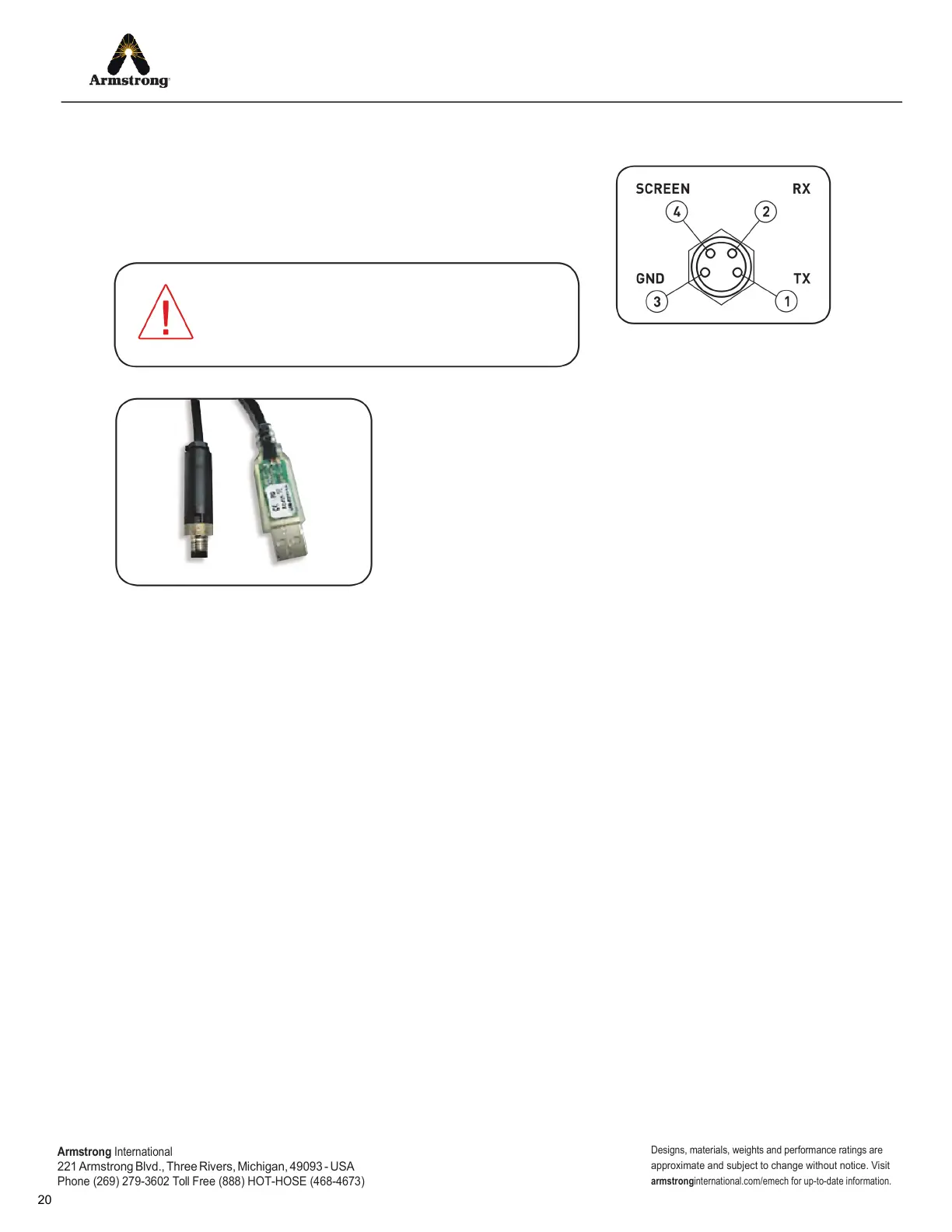

Figure 3.12: USB to Serial Port Cable
Figure 3.11: RS232 connections on
M8 female connector (PORT-3)
