Armstrong Emech G1 - Selecting Standard Configuration Set

Name Description
G12 1/4 turn or F2 valve Emech G12 Actuator with Emech F2 Valve or any other 1/4 turn valve
E20W / E25W /E40W Emech G12 Acutator with Emech F3 Valve in sizes 3/4” (20mm) 1” (25mm) 1/1/2” (40mm)
E25S / E40S Emech G12 Acutator with Emech F5 Valve in sizes 1” (25mm) 1/1/2” (40mm)
G13 1/4 turn or F2 valve Emech G13 Actuator with Emech F2 Valve or any other 1/4 turn valve
E50W
Emech G13 Actuator with Emech F3 Valve in sizes 2” (50mm)
E80WR Emech G13 Actuator with Emech F4 valve in size 3” (80mm)
E50S Emech G13 Actuator with Emech F5 Valve in sizes 2” (50mm)
E100WR F8T LRB Emech G13 Actuator with Emech 4” F8T valve with LRB port configuration
5.3.4 Selecting Standard Configuration Sets
EmechCong comes preloaded with several sets of standard conguration, which can be downloaded to a G1 actuator
with a single click.
To access these standard congurations, choose ‘Standard Config’ from the “
ools’ menu. This will show a list of
available congurations. Each item represents the combination of a model of Emech Actuator with a particular valve
type.
Selecting the appropriate item will initiate the download of the standard settings. The process should take about 10
seconds, and a message will appear confirming that the operation is complete
NOTE: The conguration software automatically unlocks and locks the actuator when conguring default settings.

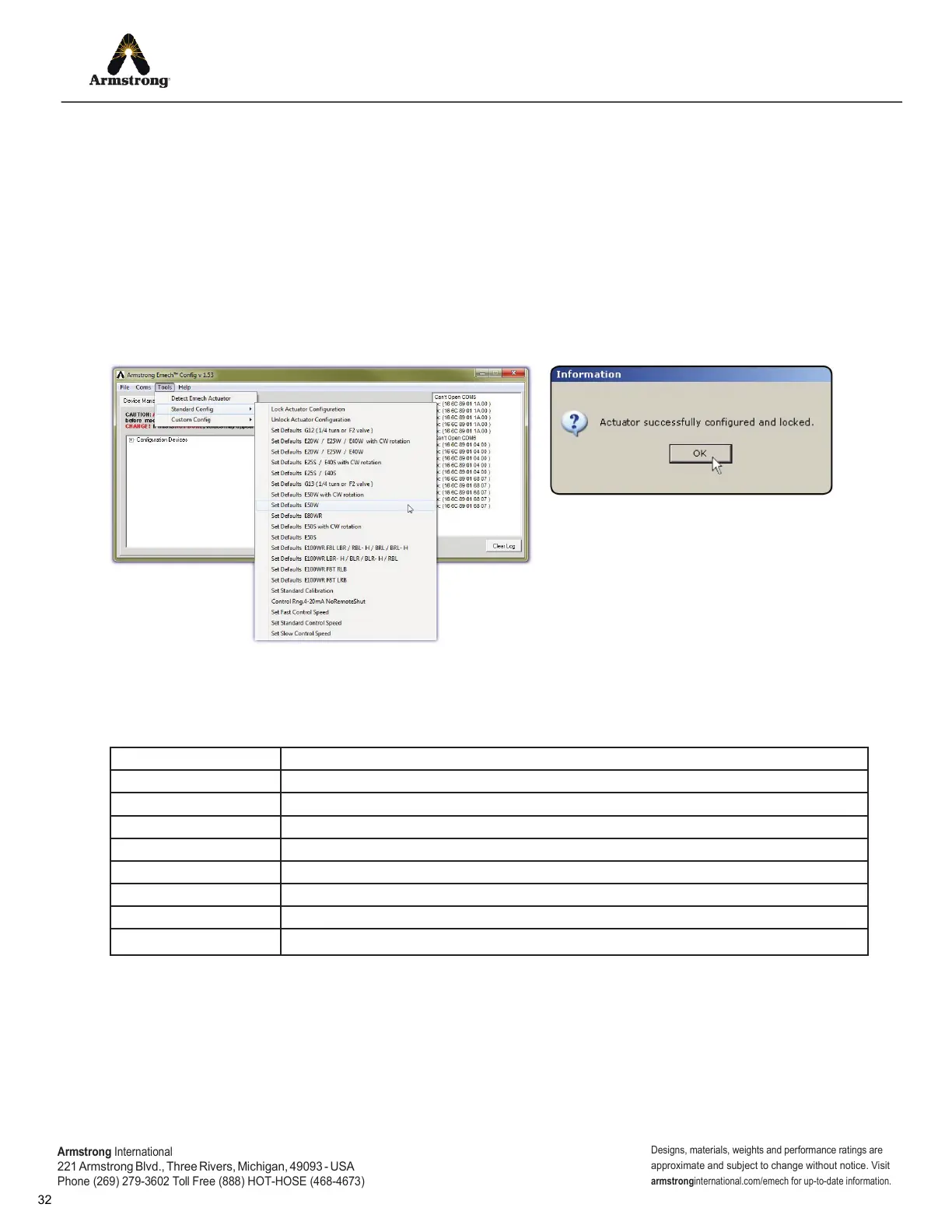

Figure 5.7: Confirmation message.
Figure 5.6: Selecting Default Configuration Settings.
Table 5.5: Standard Configuration Sets.
