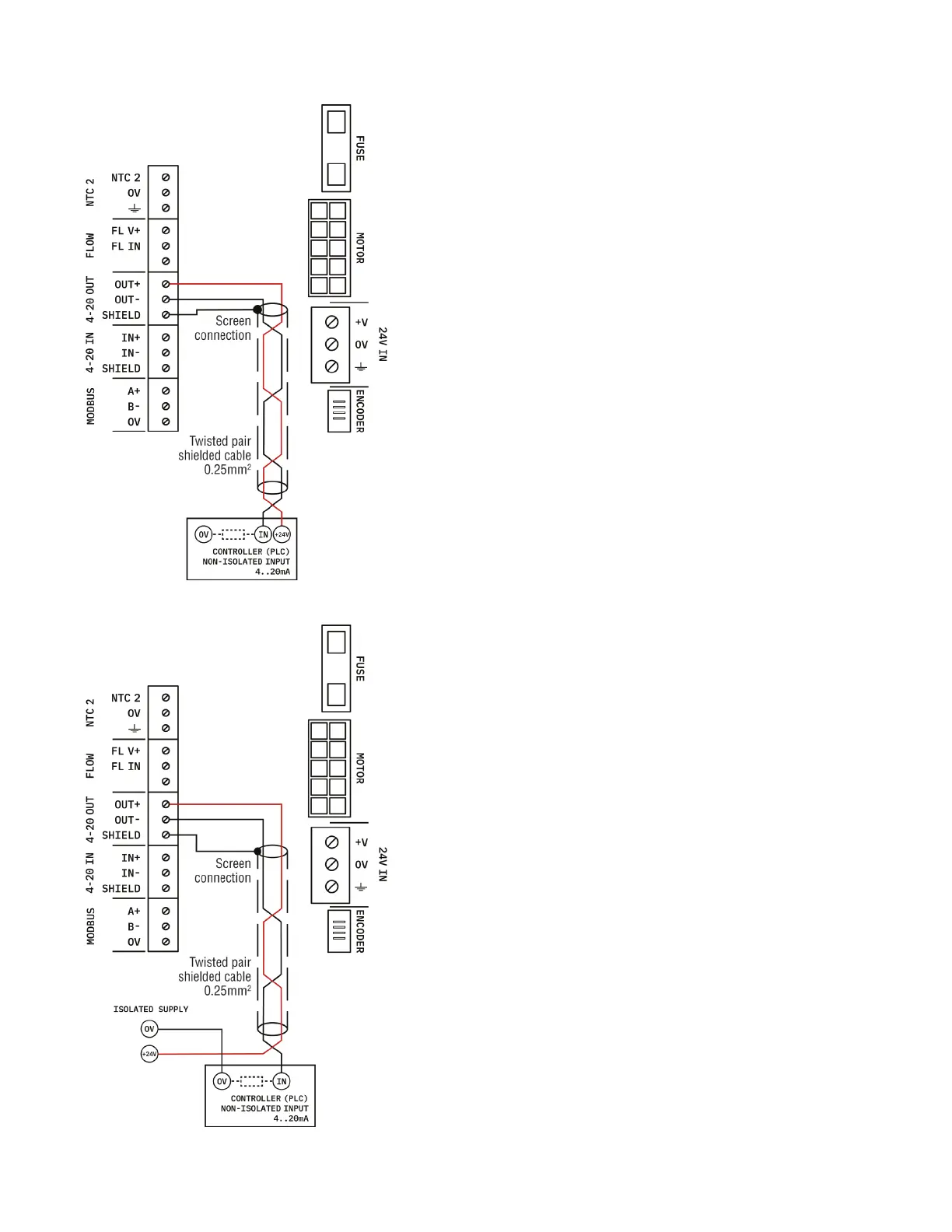

Figure 3.5
Controller with non-isolated 4-20mA loop input using the 24VDC supply
from the controller or PLC itself. (Recommended)
3.0 - Electrical Installation, cont.
Figure 3.6
Controller with non-isolated 4-20mA loop input using the 24Vdc supply
from an external isolated supply.
This could possibly increase noise in the system and is therefore not
recommended.
