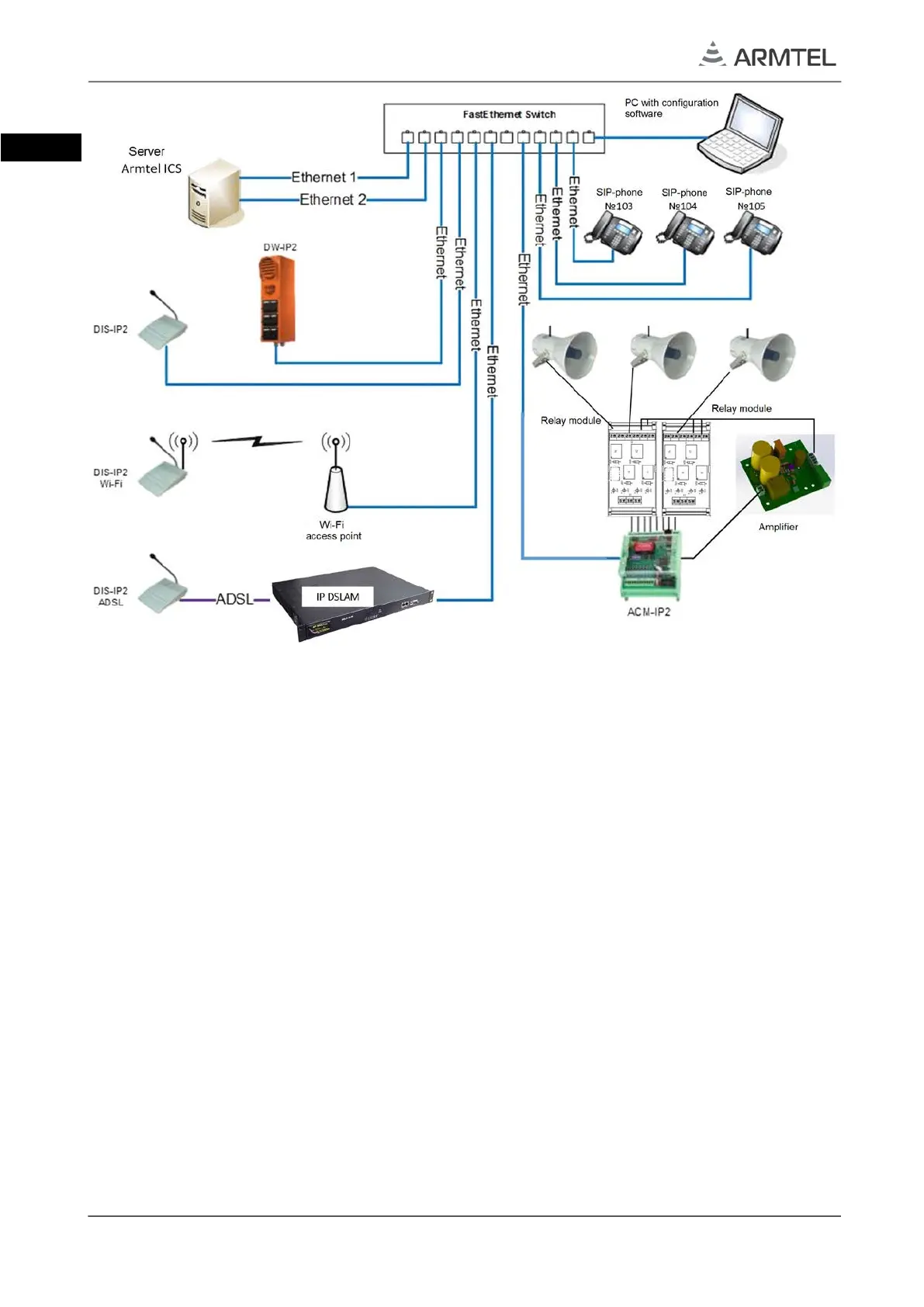

Figure 1 – Examples of using DIS-IP2 in distributed loud-speaking intercom and PA systems

For example, organization of communication over the routes:

− simplex: DIS-IP2 – Ethernet interface –Fast Ethernet Switch – Ethernet inter-

face – DW-IP2 loud-speaking call station;

− duplex: DIS-IP2 – Wi-Fi – Wi-Fi hotspot – Ethernet interface – коммутатор

Fast Ethernet Switch – Ethernet interface – SIP-phone No.103 – Ethernet in-

terface – Fast Ethernet Switch – Ethernet interface – Wi-Fi hotspot – DIS-IP2.

Organization of zone public address over the route:

− DIS-IP2 – ADSL interface – DSLAM – Ethernet interface – коммутатор Fast

Ethernet Switch – Ethernet interface – АСМ-IP2 module – external amplifier –

4-relay modules – loudspeakers (up to 8 ps.).
