ARRI SkyPanel User Manual

Physical Installation
21
To Install the SkyPanel
Always observe all safety information given above when
mounting the SkyPanel and accessories. Keep care that:
• Both guiding rails are locked.
• Tripods are set up in a stable position. Tripods need to be ap-
proved for the load they need to carry.
Always observe the additional load of cables and accessories!

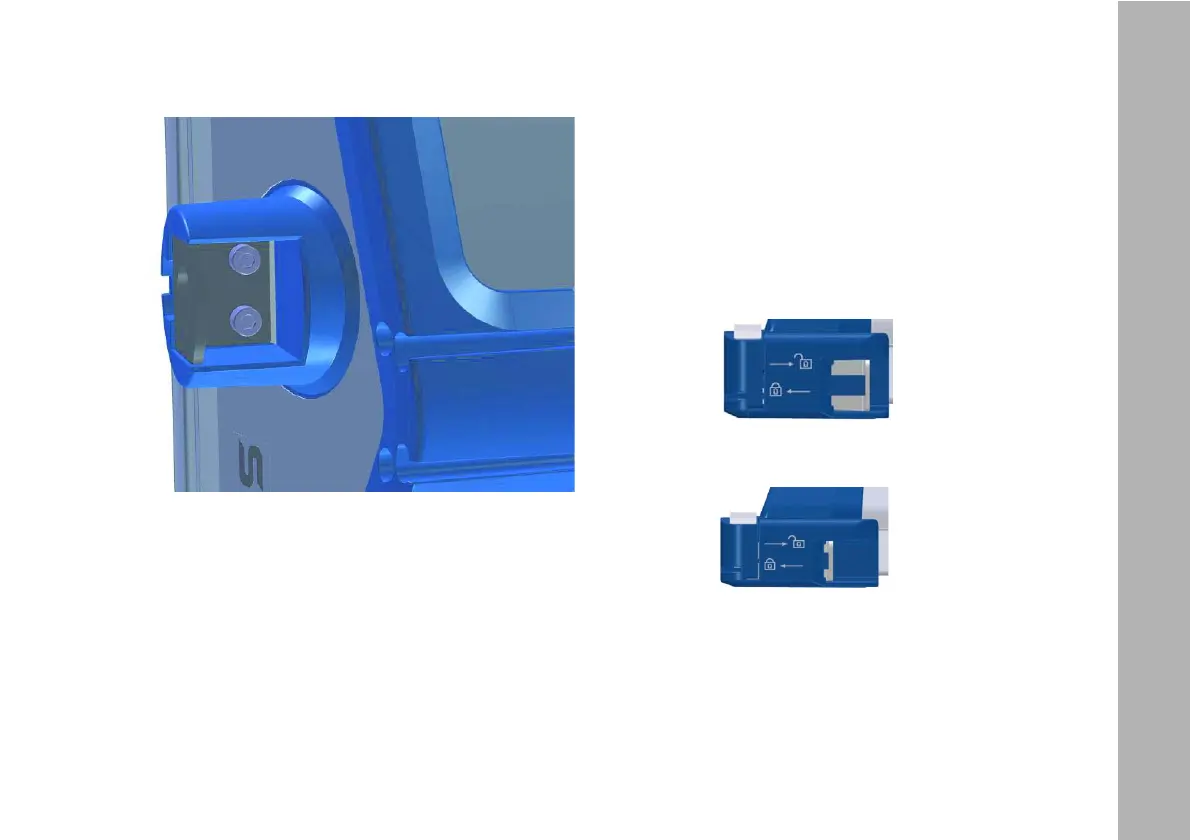

Top latch locked
Top latch unlocked
Figure 8: Locking top latches
Figure 7: To mount the safety loop brackets

ARRI SkyPanel Specifications

General

Type	LED Soft Light
Color Temperature	2800K - 10000K
CRI	≥ 95
Dimming	0 - 100%
Control	DMX, Ethernet
Input Voltage	100-240V AC, 50/60Hz
