The Fixture Menu of the SkyPanel
27
The Fixture Menu of the SkyPanel
Overview of the Fixture Menu
Feature of the Fixture Menu
POWER-LED (1):
DATA-LED (2):
STATUS-LED (3):
Color Indication
Green Fixture switched on. No error.
No color Fixture switched off.
1
2
3
4
5
6
7
8
9
10
11

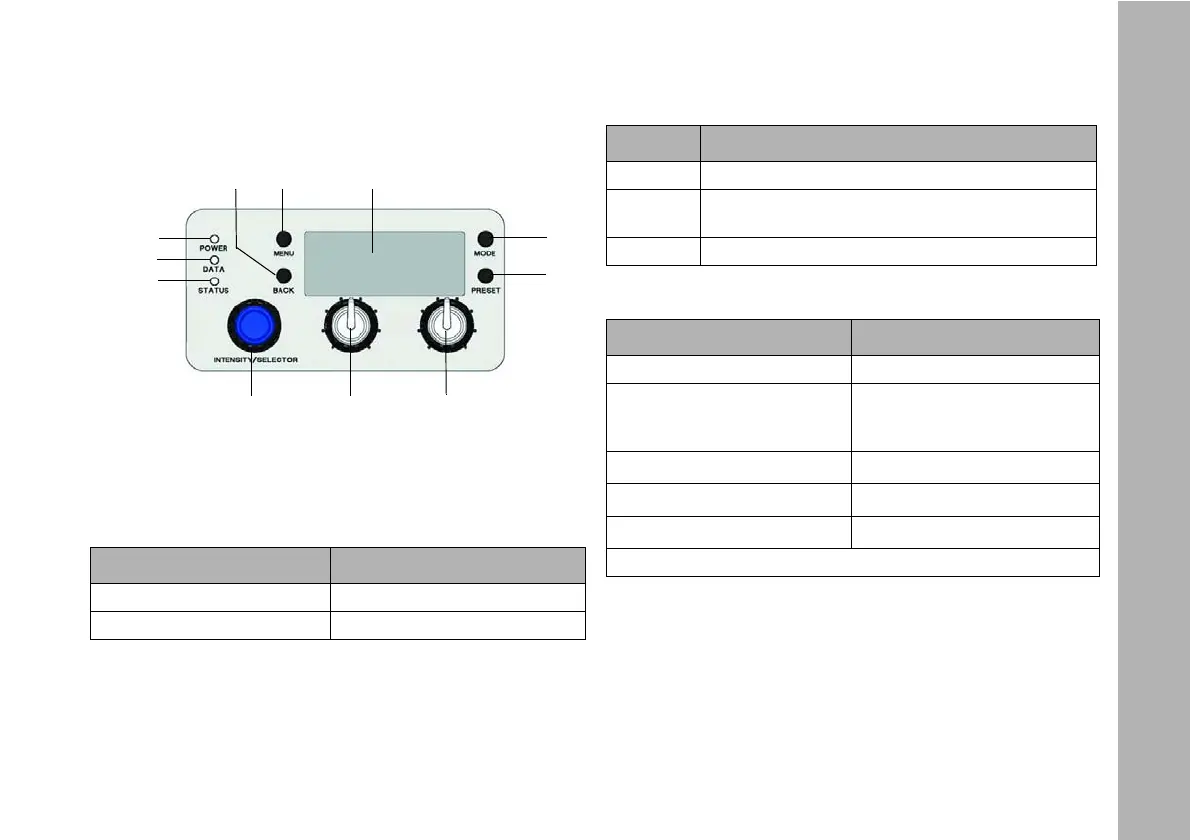

Figure 10: Fixture menu
Color Indication
Blue The fixture receives a valid control signal.
Red
No communication between fixture menu and main
processor.
No light The fixture receives no valid control signal.
Color Indication
Green No error. Normal temperature.
Red flashing (0,5s rhythm)*
Warning fixture over tempera-
ture (only with fan modes LOW
and High Speed).
Red
*
Fixture over temperature.
Change from red to green
*
Fixture normal temperature.
Red flashing (0,25s Rhythm)
*
Calibration data no loaded.
*Display lights up red when STATUS-LED is lit red

ARRI SkyPanel Specifications

General

Type	LED Soft Light
Color Temperature	2800K - 10000K
CRI	≥ 95
Dimming	0 - 100%
Control	DMX, Ethernet
Input Voltage	100-240V AC, 50/60Hz
