Basic Features
Pan and Tilt
Loose the mounting screw of the tripod or the appropriate fixing
screw of the mounting clamp to pan the SkyPanel. Tighten the
screw to avoid unintended movement. Loose the tilt-lock to tilt
the SkyPanel to the desired angle. Tighten the tilt-lock-lever to
avoid unintended movement.
Use of Accessories for Beam Shaping
You can mount accessories using the guiding rails on the front
side of the SkyPanel:
• Un-lock both top latches by sliding both levers completely
inwards and open the cover strip (see Figure 8).
• Insert the accessory from the top completely into the
guiding rails.
• Close the cover strip.
• Lock both top latches by sliding both levers completely
outwards (see Figure 8).
To Mount a Barndoor
A barndoor is mounted using the outer guiding rails
(see Figure 9).
• Close the cover strip. Lock both top latches by sliding both le-
vers completely outwards (see Figure 8).
• Insert the barndoor completely into the outer guiding rails until
both safety catches snap in.
DMX / RDM-interface
The SkyPanel has a DMX / RDM-interface. It has locking 5-pin
XLR connectors for DMX / RDM data input and throughput.
Please find more detailed information how to establish a DMX
/ RDM data-link in chapter “DMX” on page 37.

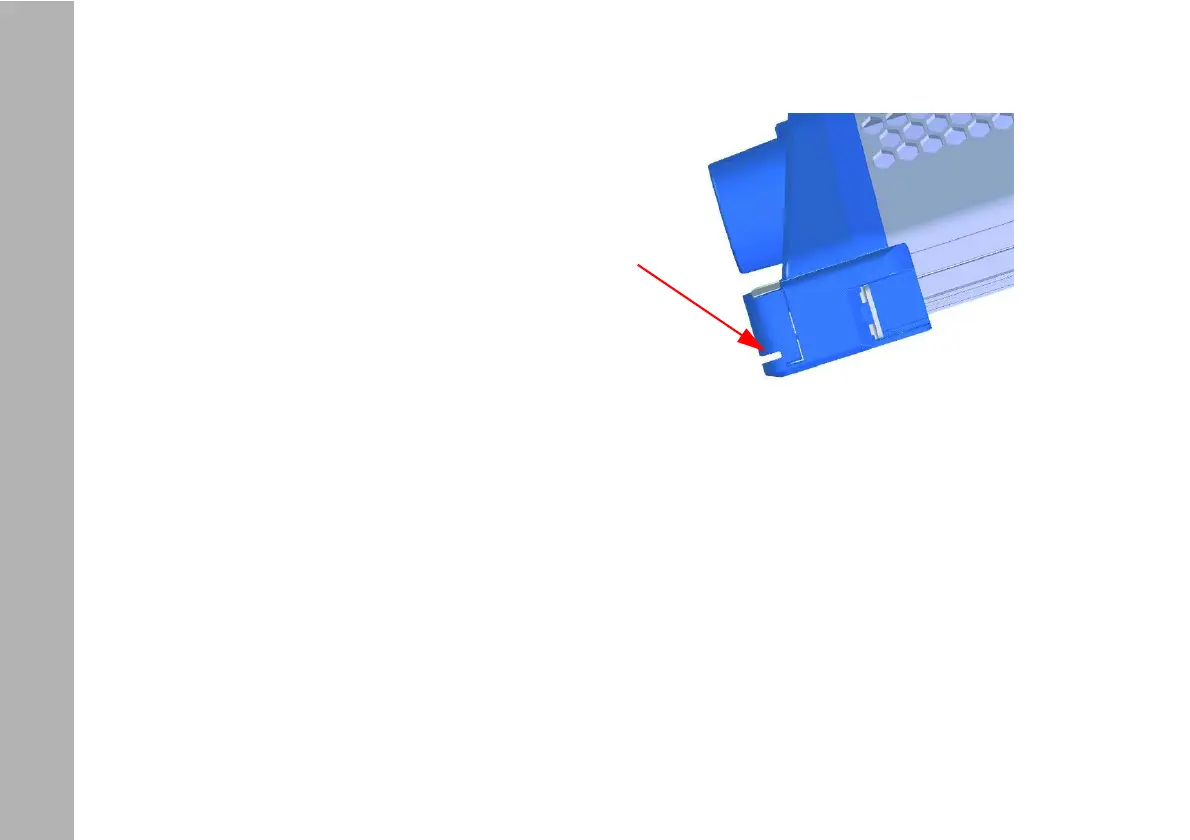

Figure 9: To mount a barndoor
