Chapter 3
Product Overview
Front Panel

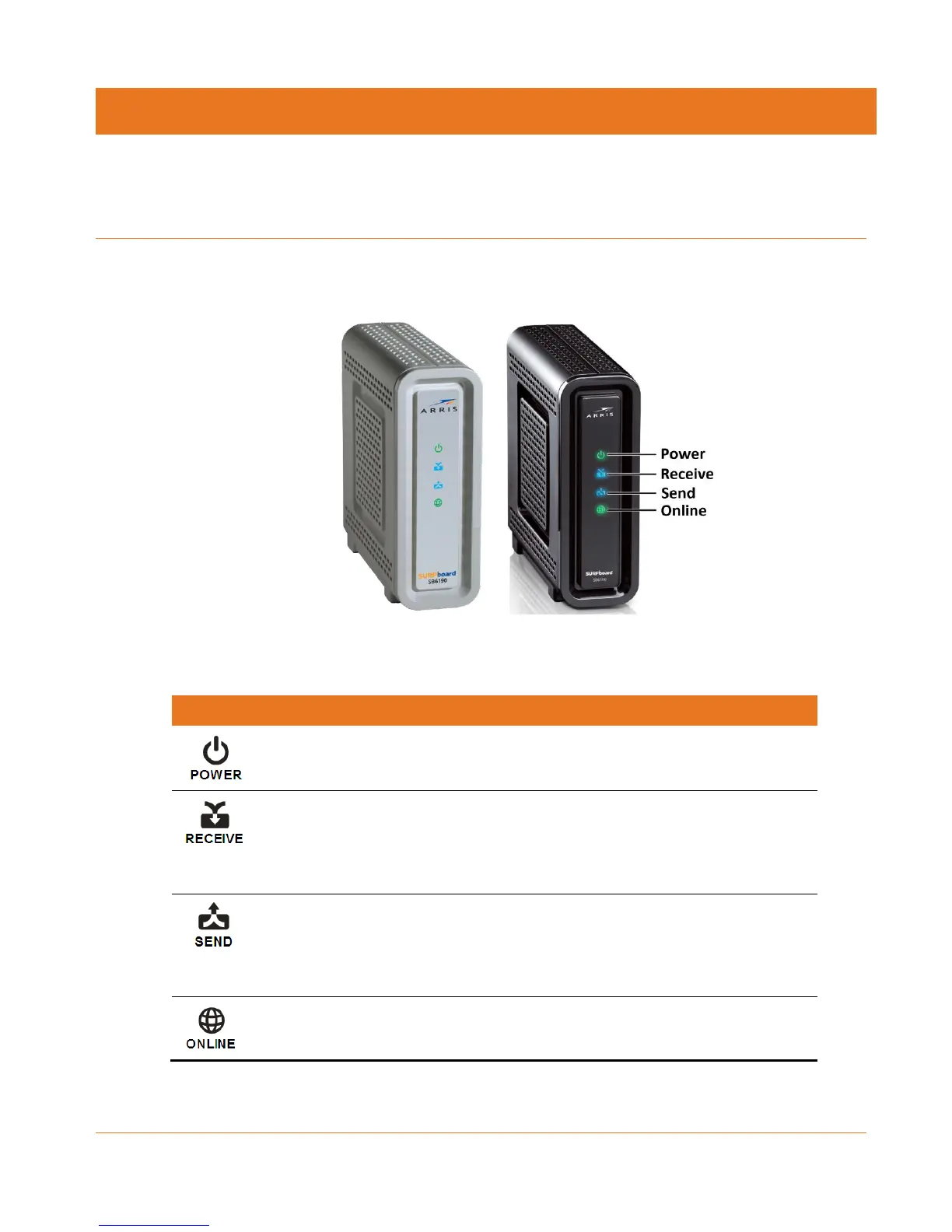

Figure 1: SB6190 Front View
Table 2. SB6190 Front Panel LED Icons
LED Icon
Blinking
On (Solid)
Not applicable – icon does not
blink.
Green: Power is properly connected.
Scanning for a downstream
(receive) channel connection.
Green: Non-bonded downstream
channel is connected.
Blue *: High-speed Internet connection
with bonded downstream channels.
Scanning for an upstream (send)
channel connection.
Green: Non-bonded upstream channel
is connected.
Blue *: High-speed Internet connection
with bonded upstream channels.
Scanning for an Internet
connection.
Green: Startup process completed.
* Blue: Indicates DOCSIS 3.0 operation (high-speed Internet access) which may not be
available in all locations. Check with your service provider for availability in your area.
