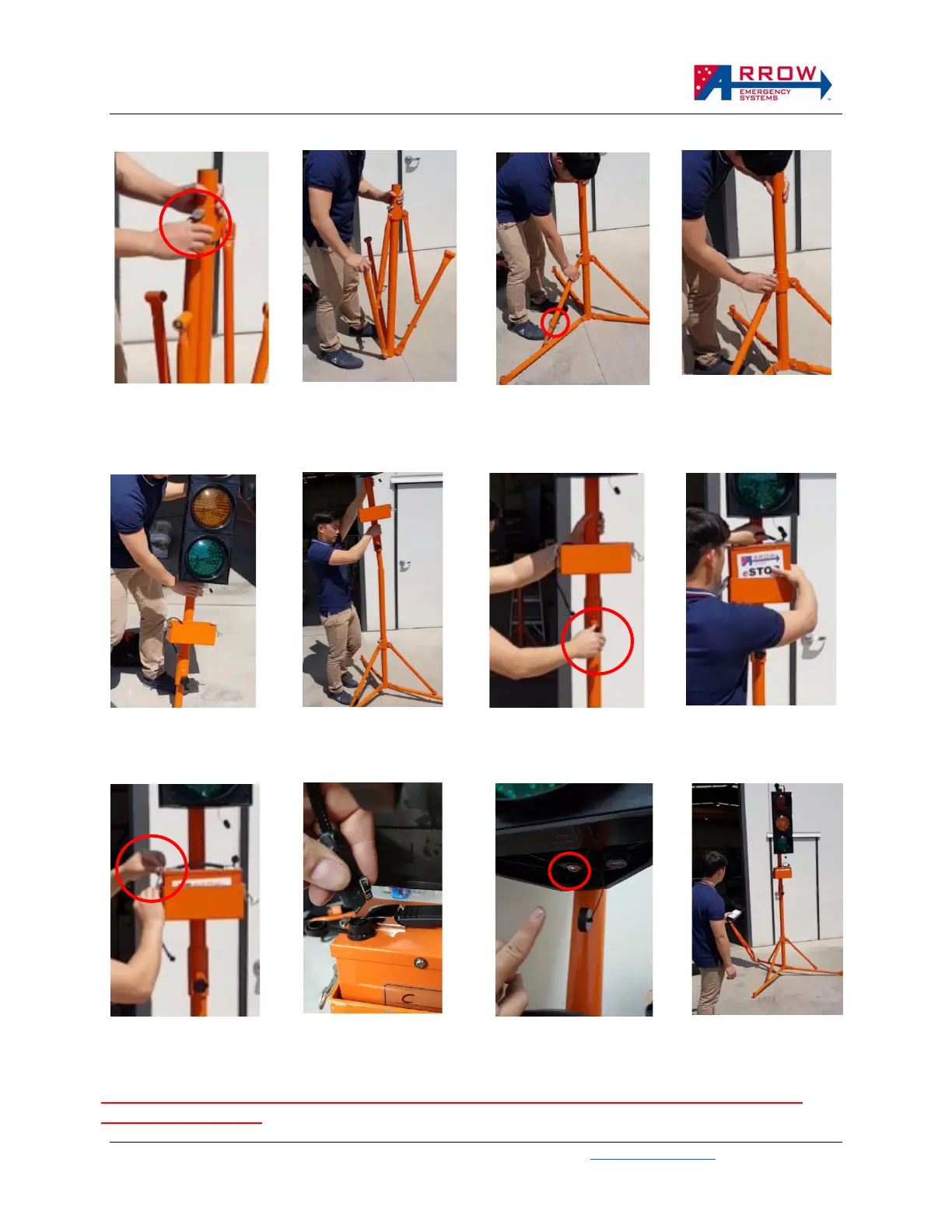

Unit Assembly/On-site Setup
A B
C
D
Pull spring pin to release
leg
Extend legs out by pushing
towards the ground
Place legs onto a flat surface and
align adjustable locking column
with pin holes to for uneven
surface. (red circle)
Slide pole up and down to
adjust height then release
pin to lock in place
E
F
G H
Use two hands to
lift traffic lantern
onto base
Slide lantern into the center
locking column
Secure with locking screw to
stop lantern from rotating
Insert battery pack into battery
holder
I
K
L
Lock latches to secure
battery box
Connect power cable.
Connector latches
once pushed in place.
Switch on lantern
Unit is ready to operate
with Hand Remote Control
IMPORTANT: ensure eSTOP™ is stable and is weighted down with sandbags prior to operation. One sandbag
per tripod leg is required.
