Arthrex Synergy UHD4 Series User Manual

950-0073-00 B SM, English, Arthrex Synergy UHD4 System 47 of 74
3.6 CAMERA HEAD
The camera head is a hand held device intended for use within the sterile field and
contact with a patient. It connects to the front panel of a CCU through a cable. The
grasping mechanism then couples to an endoscope and light guide for imaging.

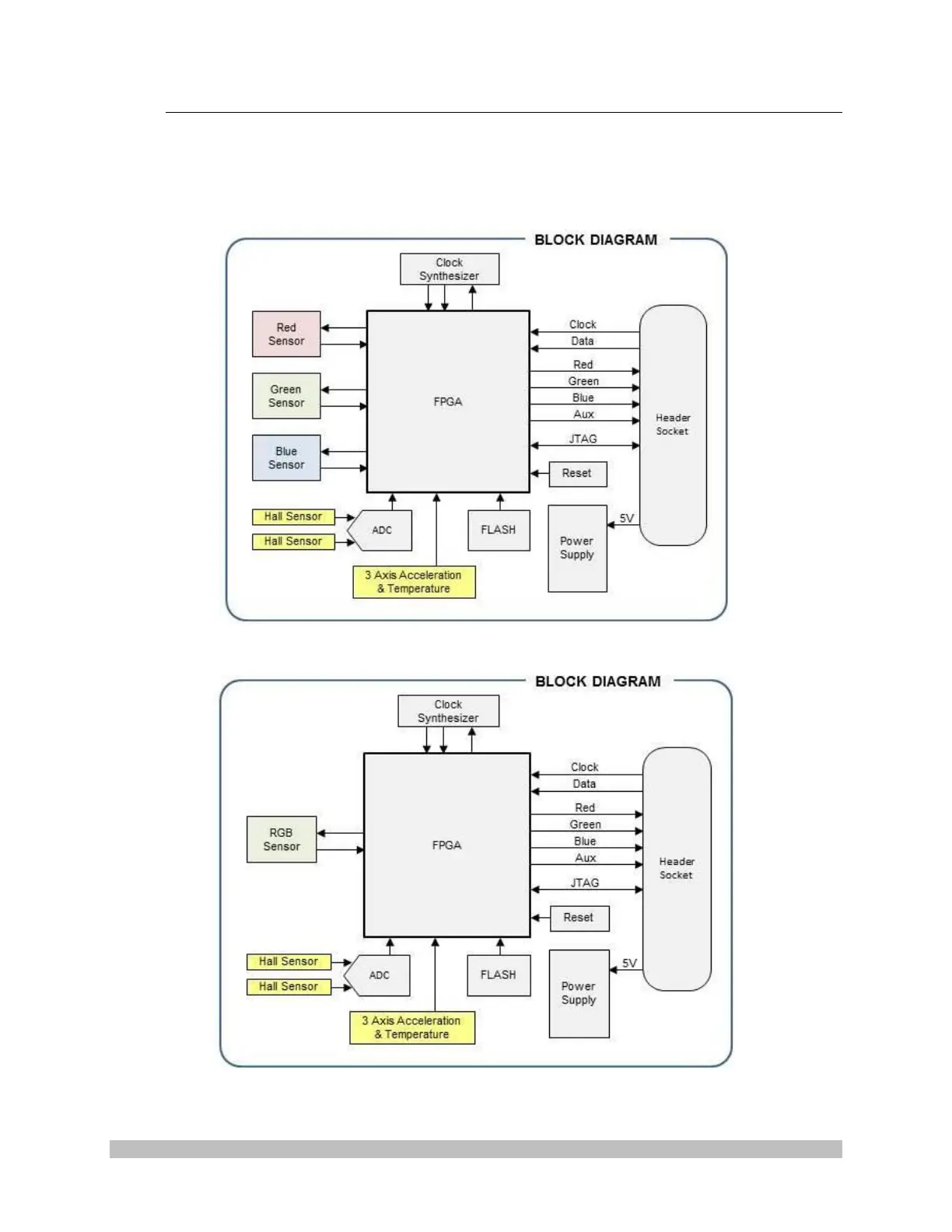

Figure 32 - UHD Head Block Diagram
Figure 33 - HD Head Block Diagram
