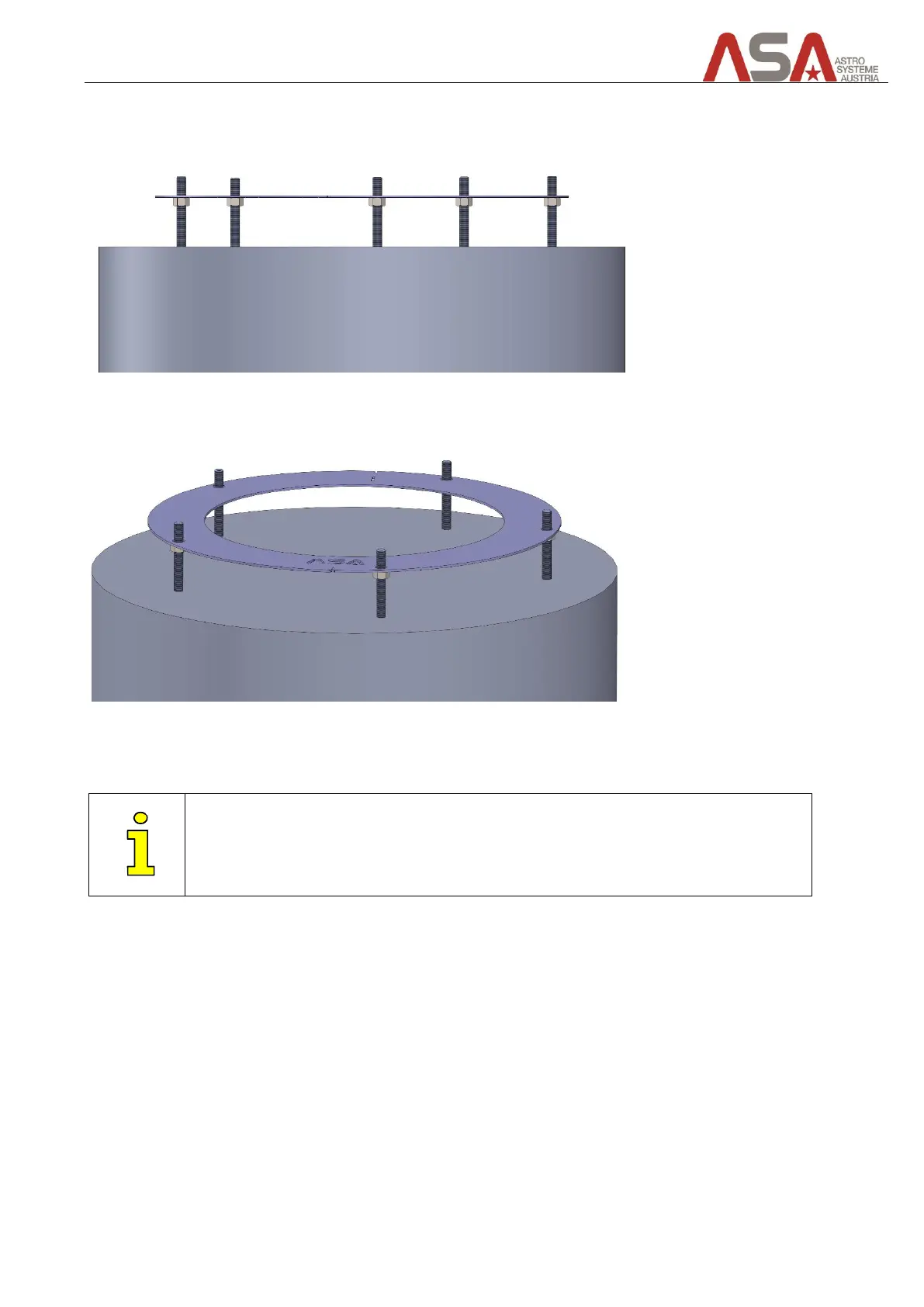

Put M12 nuts onto the rods and put the template on them to align the thread bolts (Figure 8).
Figure 11
Figure 12
Consider the curing time of the adhesive before continuing with the next steps.
Then remove the template and nuts from the rods.
