7 Aligning the telescope base
The telescope base has to be aligned with a water level. Therefor lay the water level onto the centre of the fork
and adjust the pitch by using the adjustable telescope feet. You need a 17mm and a 24mm jaw spanner for that.

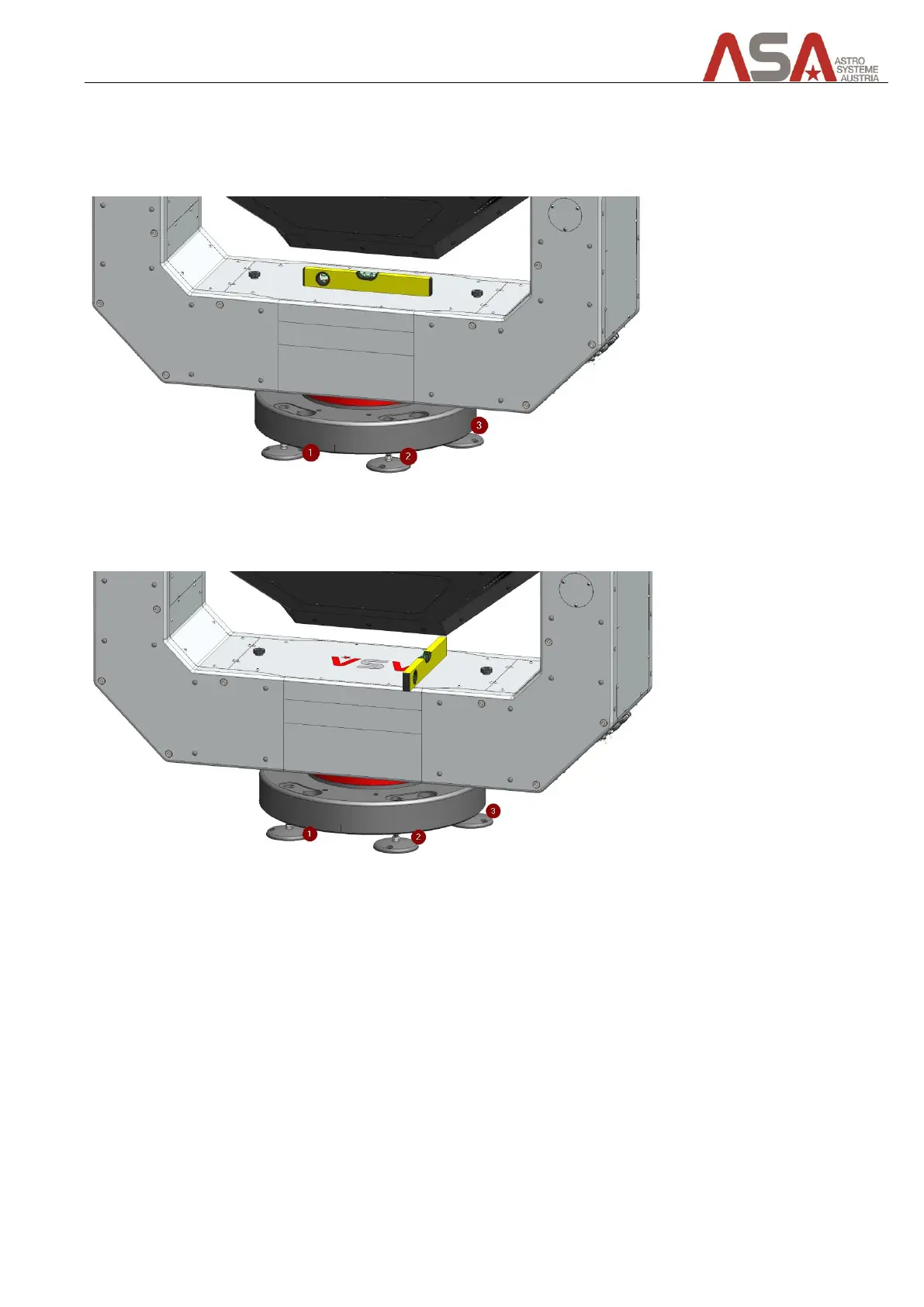

Figure 26 - water level and adjustable feet
Rotate the water level by 90° and adjust the pitch in this direction too.
Figure 27 - water level rotated by 90°
When the telescope base is aligned perfectly you can fix the adjustable feet with their counter nuts.
