Then put a washer and a nut onto the thread rods and tighten it.

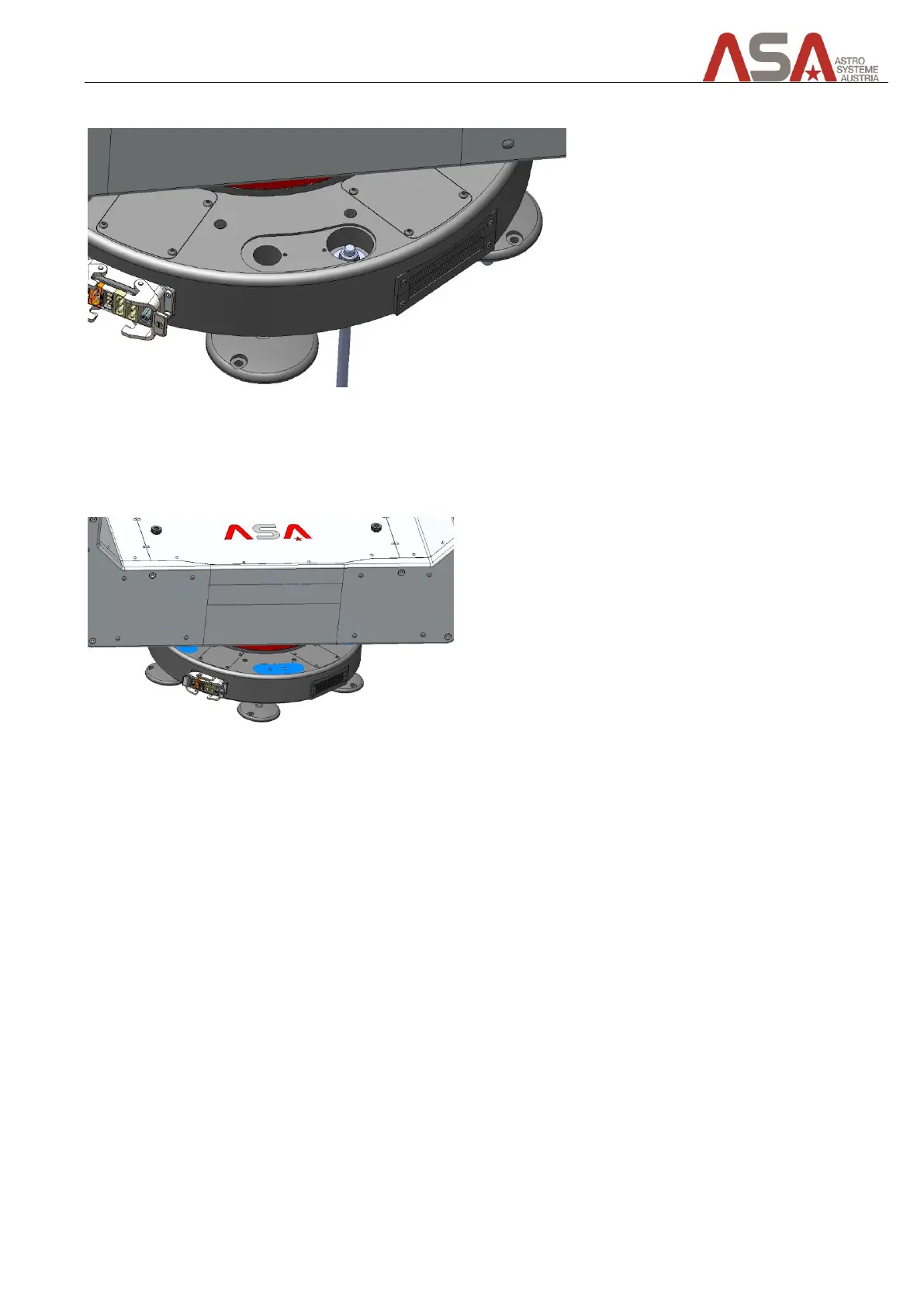

Figure 28 - fix telescope on the ground with washer and nut
Now you can attach the cover plates of the baseplate again.
Figure 29 - base covers
