5.6 Lifting the telescope upper part
Fix the lifting belts as shown in the picture below.

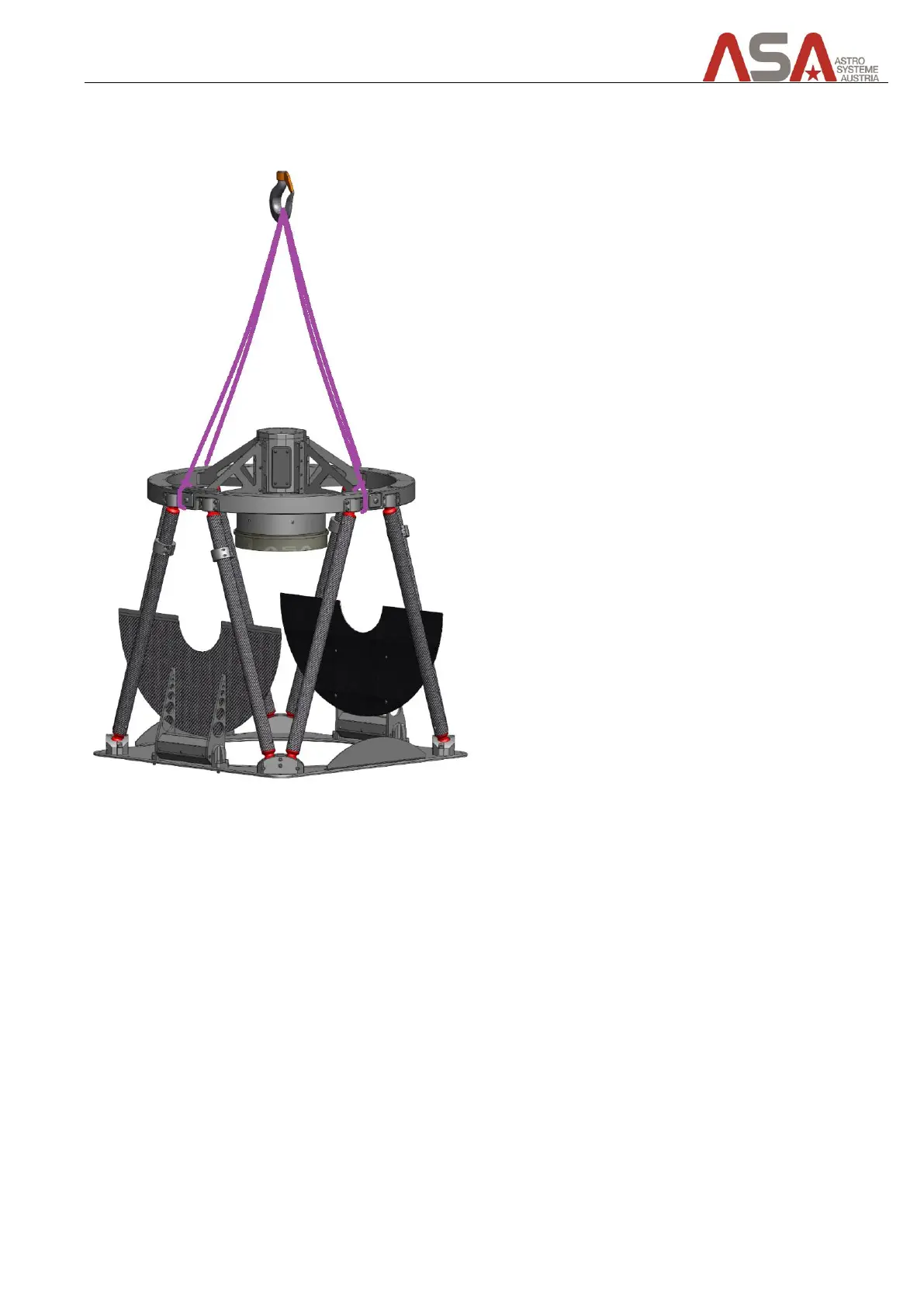

Figure 20 – how to lift telescope top part
Open the mirror covers (if available).
