12.5 Collimating tertiary mirror axle
If the laser points remain outside the centre triangle, the tertiary mirror axle has to be tilted. Therefor remove
the back cover of the telescope:

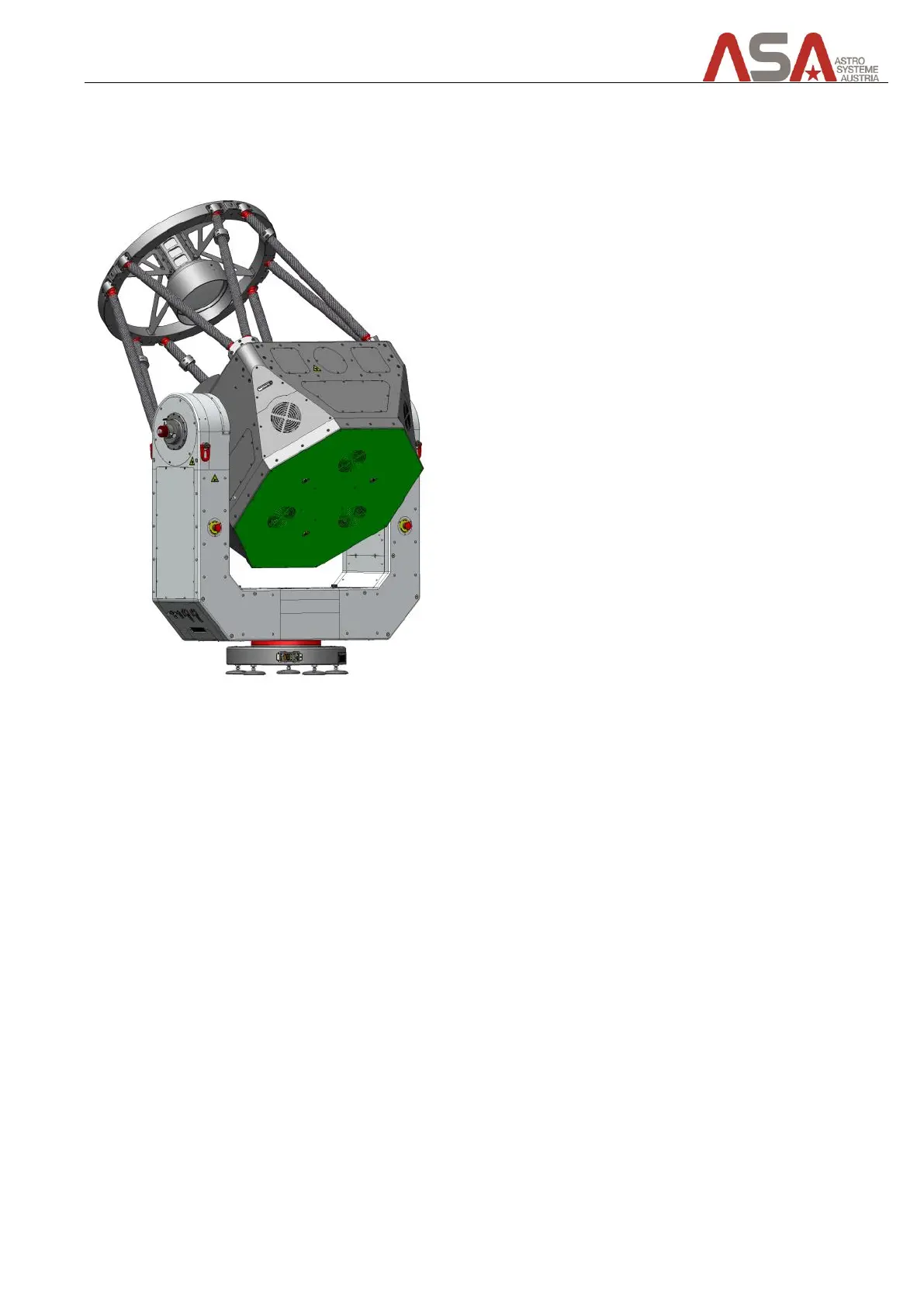

Figure 55 - Telescope back cover
