AZ800 user manual - hardware
Created by: MPuchner 07.2019
version: 9600021A
Original user manual
page 60 of 68
printed: 04.03.2020

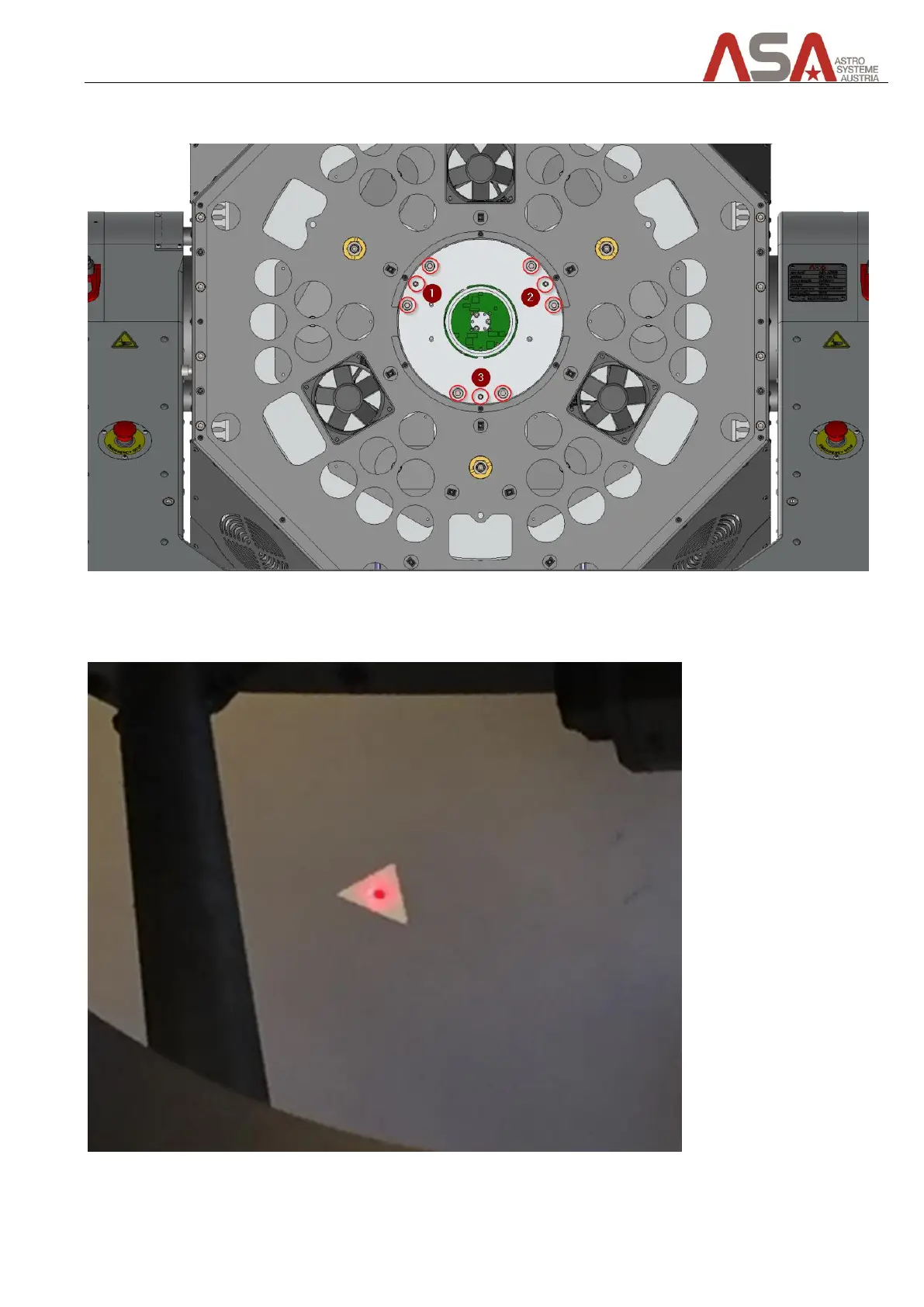

The tertiary mirror axle can be tilted by using the push and pull screws shown in the picture below.
Figure 56 - push and pull screws for tilting the tertiary mirror axle
Tilt the axle so that the laser point is in the centre of the secondary mirror.
Figure 57 - result of tertiary mirror axle collimation
