12.1 Collimating the tertiary mirror offset
The tertiary mirror has to be located in the correct height.
Switch on one of the lasers.
Rotate the tertiary mirror by hand so that it is orientated 90° to the laser. When the laser beam slightly touches
the mirror surface, the offset is adjusted correctly.

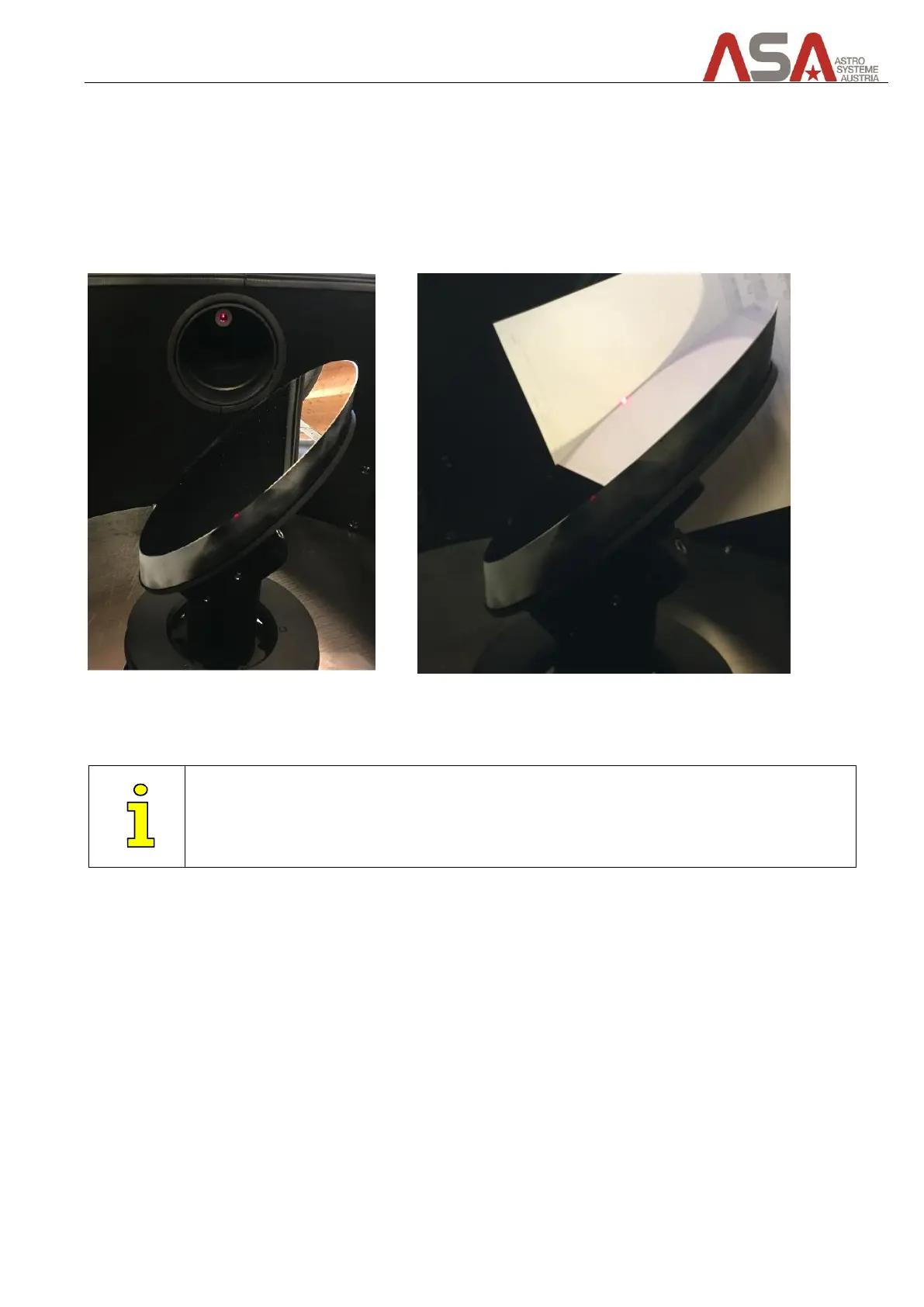

Figure 46 - tertiary mirror offset adjusted correctly
The tertiary mirror offset is already adjusted in the factory. Do not change it unless it is
massively misaligned.
