9.7 Telescope bottom side

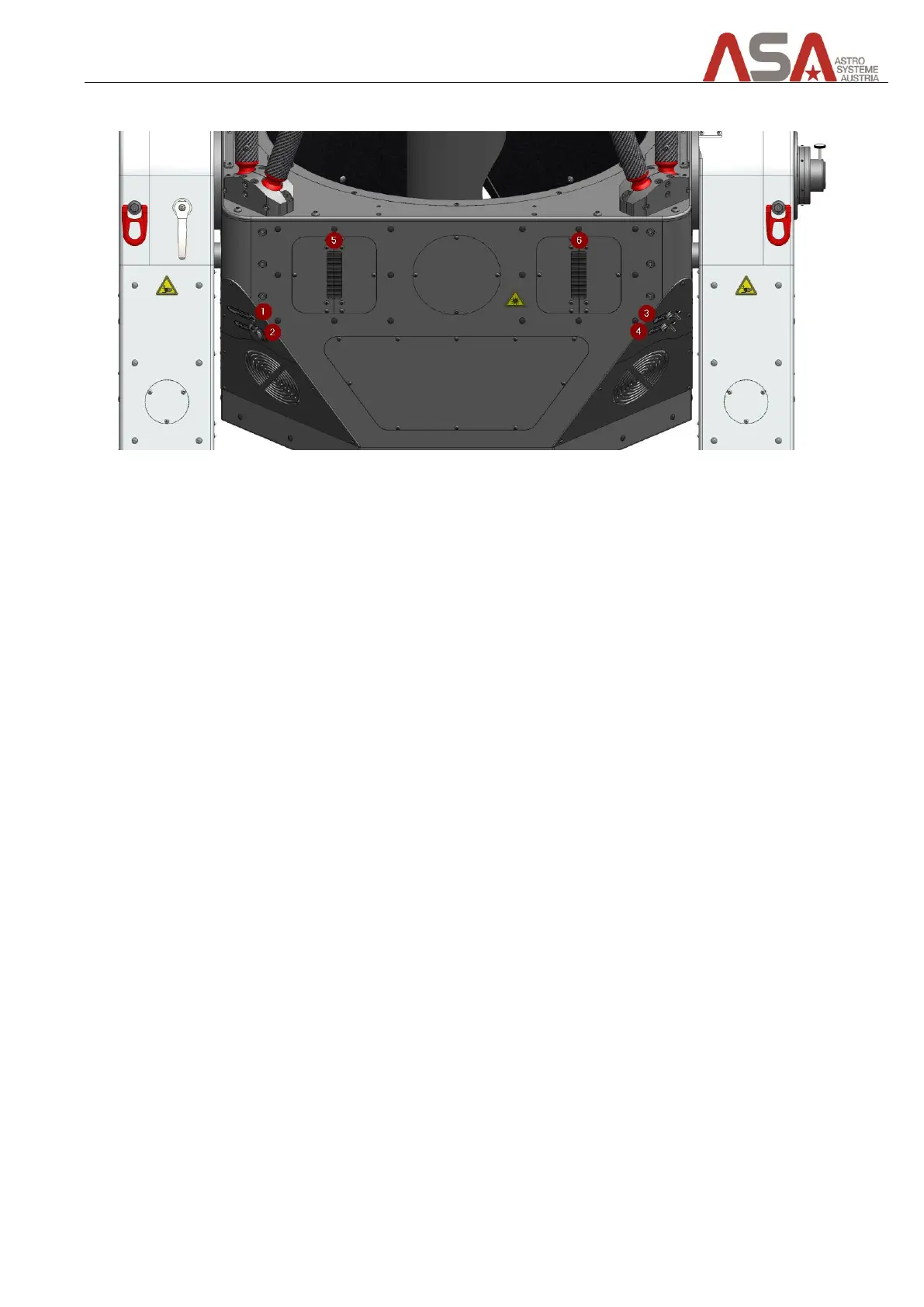

Figure 39 - Connector on telescope bottom side
1 Mirror cover (optional)
contains power and data connection
2 USB (optional – is only present when 3
rd
and 4
th
nasmyth focus option is installed)
you can connect your camera/filter wheel
3 Derotator (optional – is only present when 3
rd
and 4
th
nasmyth focus option is installed)
contains power and data connection
4 Filter wheel (optional – is only present when 3
rd
and 4
th
nasmyth focus option is installed)
contains power and data connection
5 In-/outlet for user cables
you can lay wires for your equipment through this hole
6 In-/outlet for user cables
you can lay wires for your equipment through this hole
