12.3 Twisting the tertiary mirror for switching between nasmyth foci
For aligning the inclination of the tertiary mirror you have to switch between the 2 focus ports several times by
rotating the tertiary mirror by hand. Then we compare the position of the laser points between the two focus
ports.

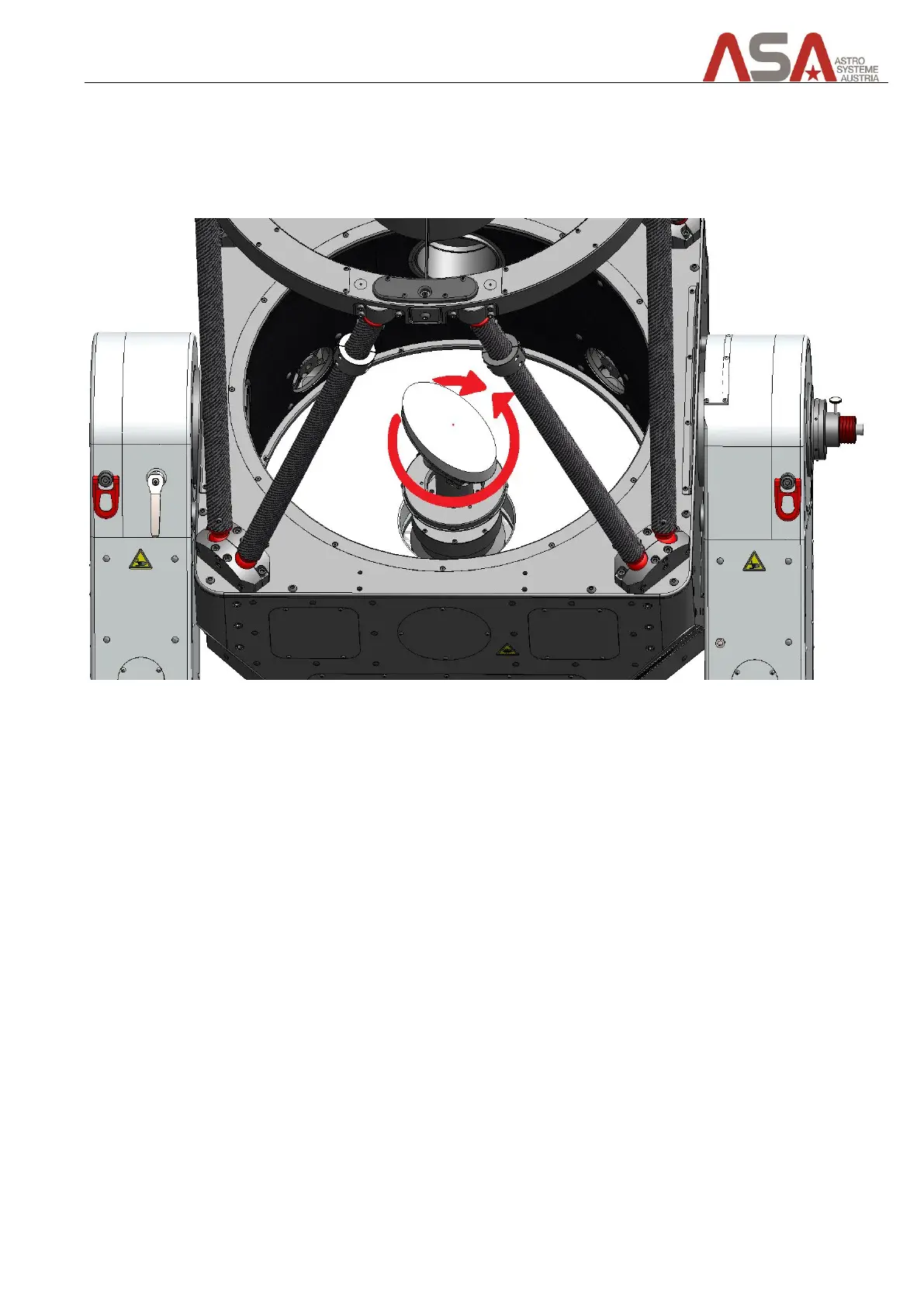

Figure 49 - how to switch between nasmyth focus ports
