11 Fans
There are 7 120mm fans installed in the telescope. 3 of them blow air onto the back side of the primary mirror
to achieve a mirror temperature equal to the ambient temperature as fast as possible. The other 4 fans blow air
onto the primary mirror surface to remove layers of warm air.
The fans can be switched on and off via software.

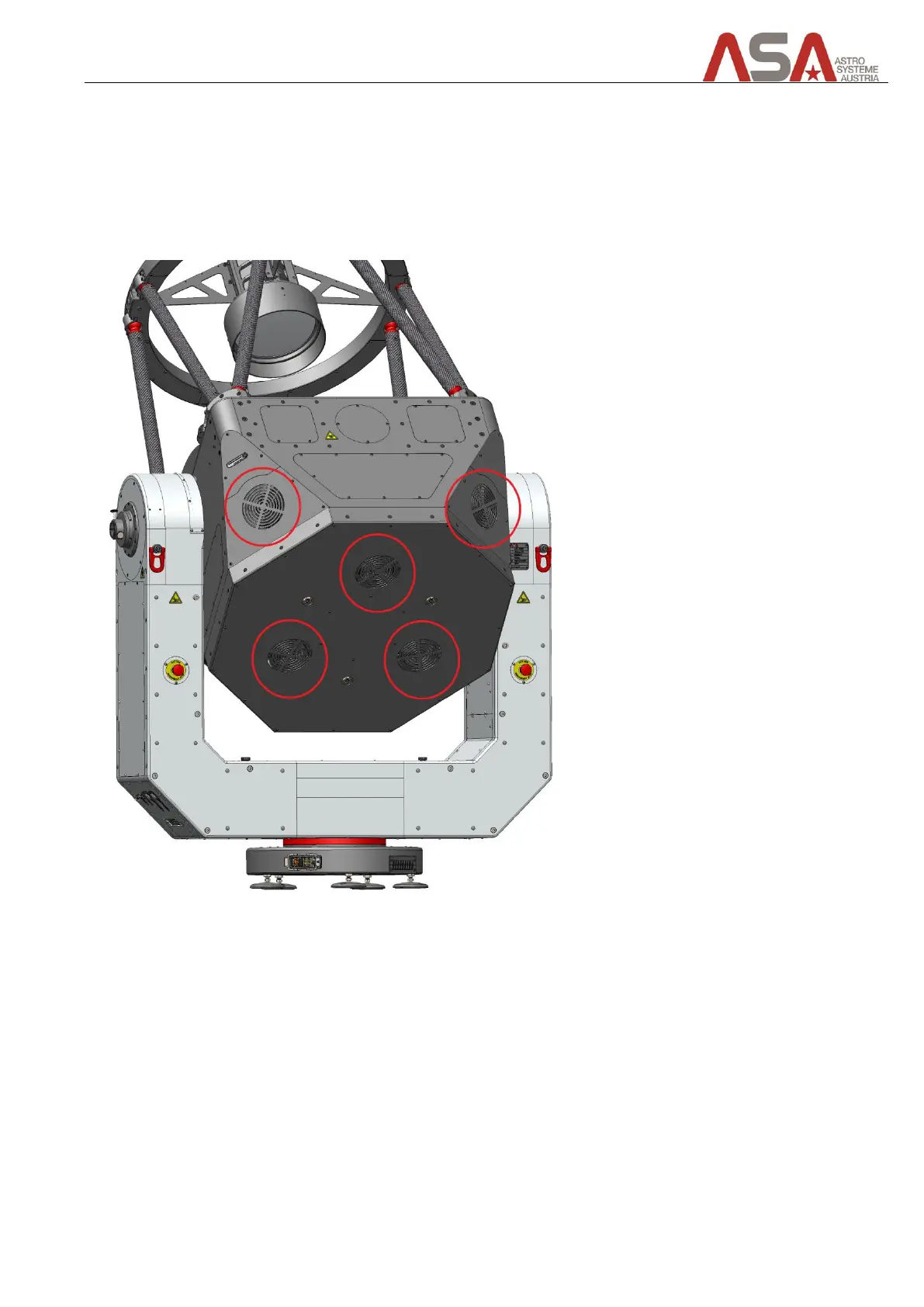

Figure 43 - fans
