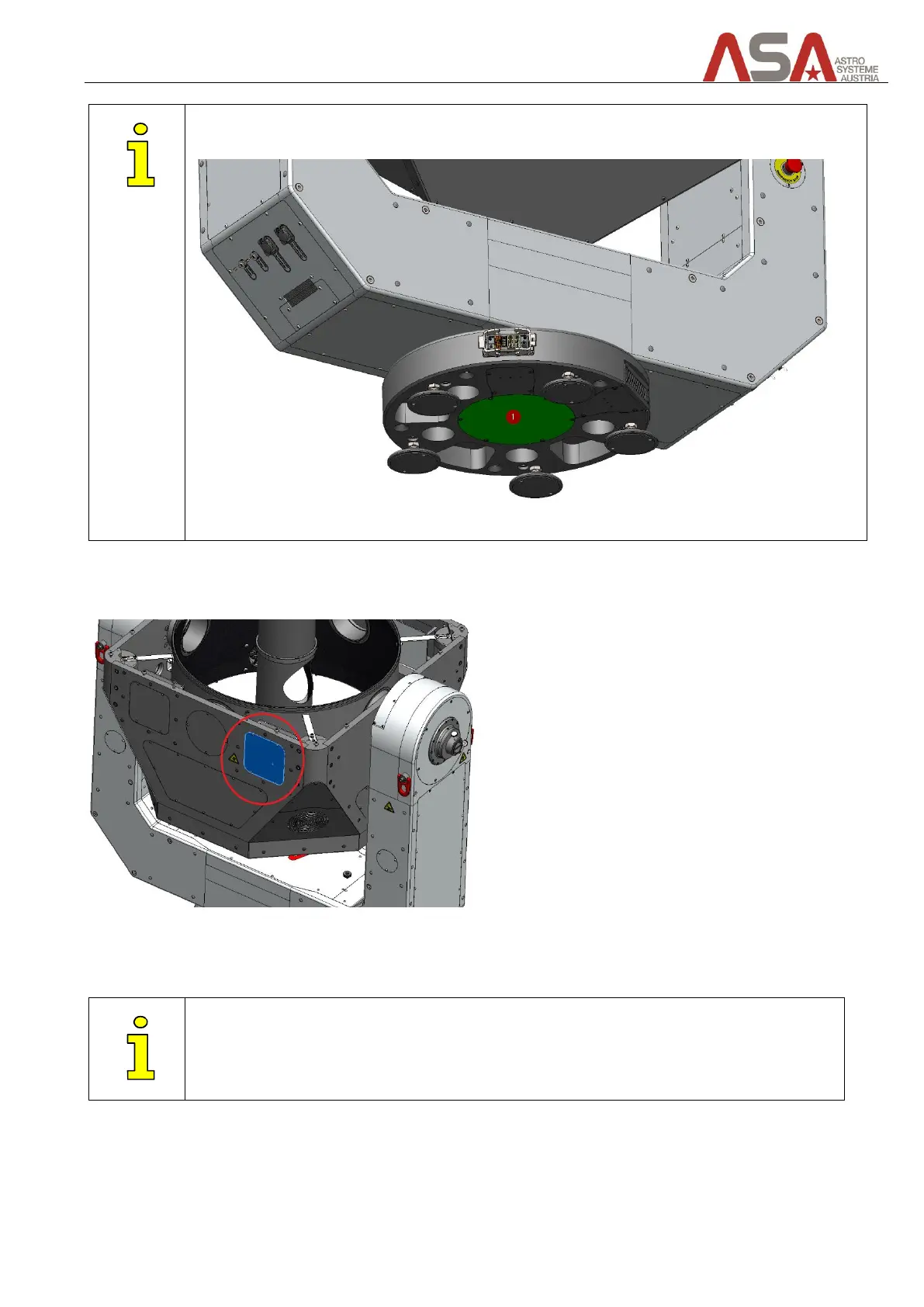

ATTENTION: In case you are using a hollow pillar and want to lay cables through the pillar, you need to remove the
bottom cover plate (1) of the telescope before placing it on the concrete.
Figure 18 - bottom cover plate
Remove the cover plate to gain access to the clamp terminals:
Figure 19 - cover plate for clamp terminals
Do not put washers and nuts onto the thread rods yes, because the telescope base has to be
aligned first.
