ASA Electronics AZ800 - Page 26

AZ800 user manual - hardware
Created by: MPuchner 07.2019
version: 9600021A
Original user manual
page 26 of 68
printed: 04.03.2020

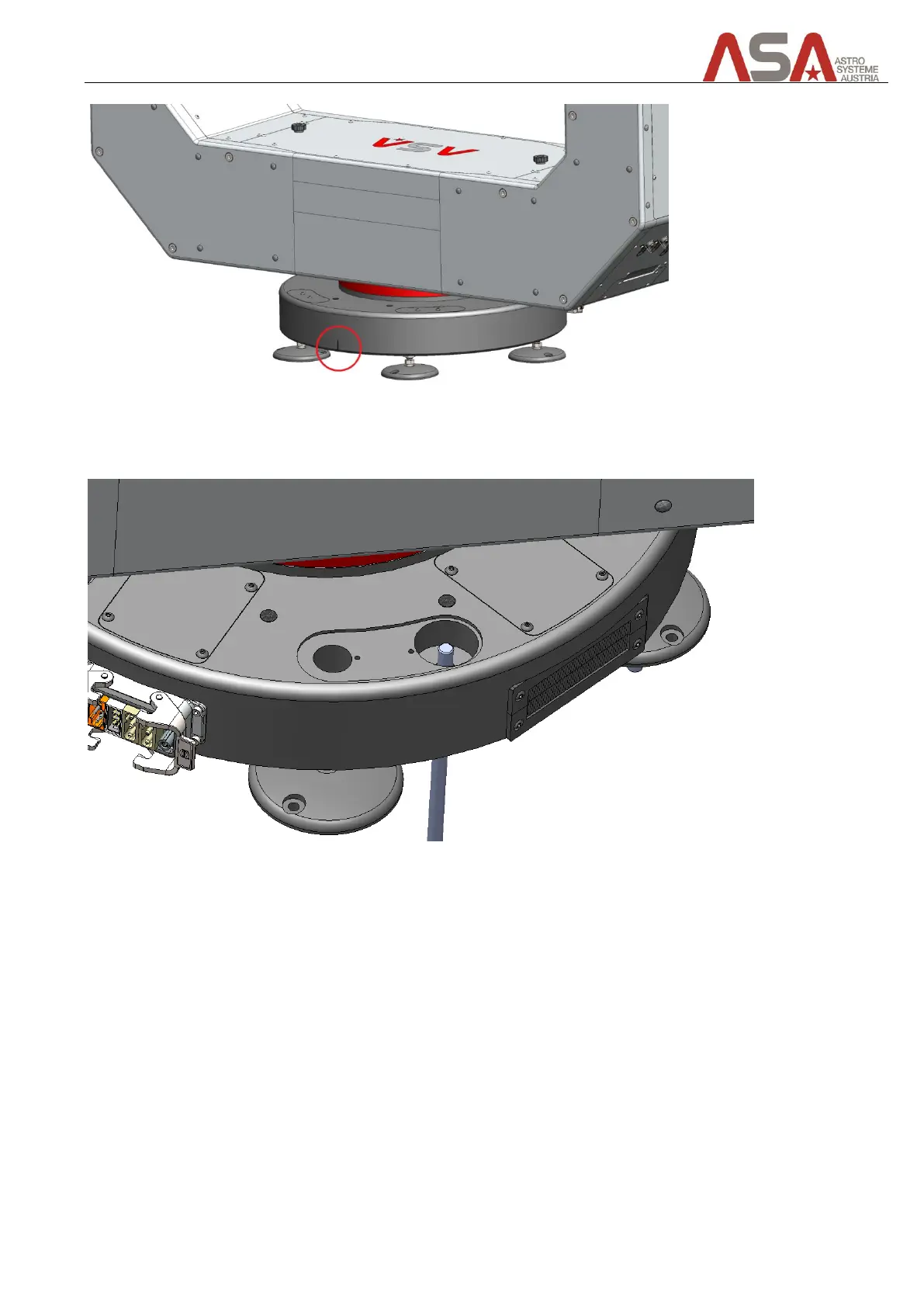

Figure 16 - south (north) marking on the telescope base
Lift the telescope onto the thread rods.
Figure 17 - telescope put on thread rods
