ASA Electronics AZ800 - Page 31

AZ800 user manual - hardware
Created by: MPuchner 07.2019
version: 9600021A
Original user manual
page 31 of 68
printed: 04.03.2020
Newer version:

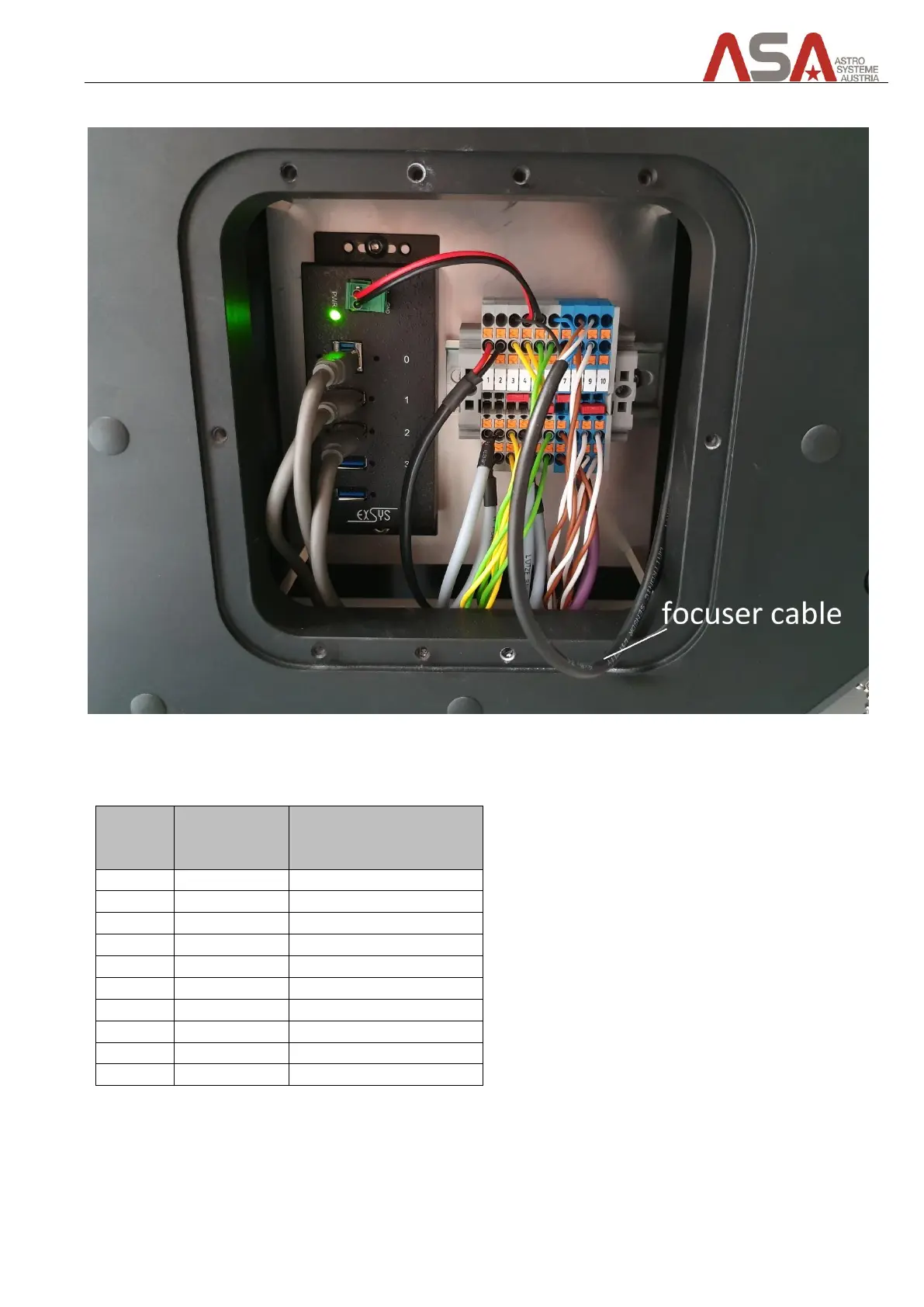

Figure 23 - telescope top part cable connection (newer version)
Terminal
#
function
wire colour of cable
coming from the
telescope top
1
Fans +
2
Fans -
3
+24VDC
black
4
+24VDC
5
GND
6
GND
blue
7
CAN Bus - H
8
CAN Bus - H
brown
9
CAN Bus - L
white
10
CAN Bus - L
Mount the cover plates again to close the terminal opening.
