2-4 Installing Asanté MacCon Cards
MacCon-i NuBus Card
∆
Note: If you wish to disable link integrity, use the JP1
jumper on the MacCon NuBus card, as shown in Figure 2-
2. (For example, hubs made before the 10BaseT specifica-
tions were published do not support link integrity.)

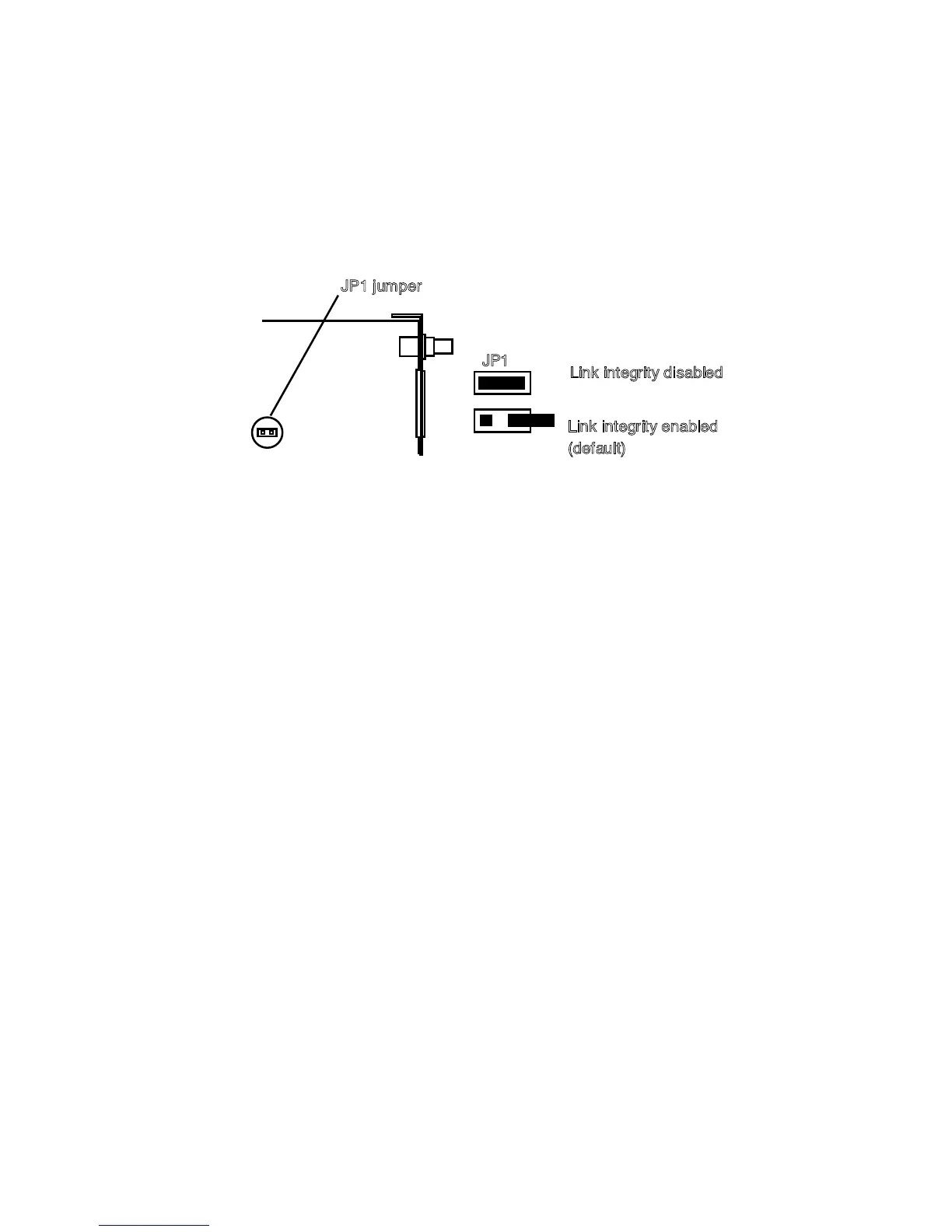

Figure 2-2
Disabling Link Integrity, MacCon-i NuBus card
Installing the MacCon NuBus Card
1
Power down the Macintosh. Disconnect and remove the
power cable.
2
Open the Macintosh.
3
Remove the access port cover. Make sure you are ground-
ed: check that your anti-static wrist strap is properly at-
tached to your wrist and to the Macintosh chassis.
4
Plug the MacCon card into the NuBus expansion slot on
the motherboard:
— With the card’s Ethernet connectors facing the expan-
sion slot access port, carefully line up the card’s edge
connector with the expansion slot (see Figure 2-3).
JP1
Link integrity disabled
JP1 jumper
Link integrity enabled
(default)
