Installing Asanté MacCon Cards 2-19

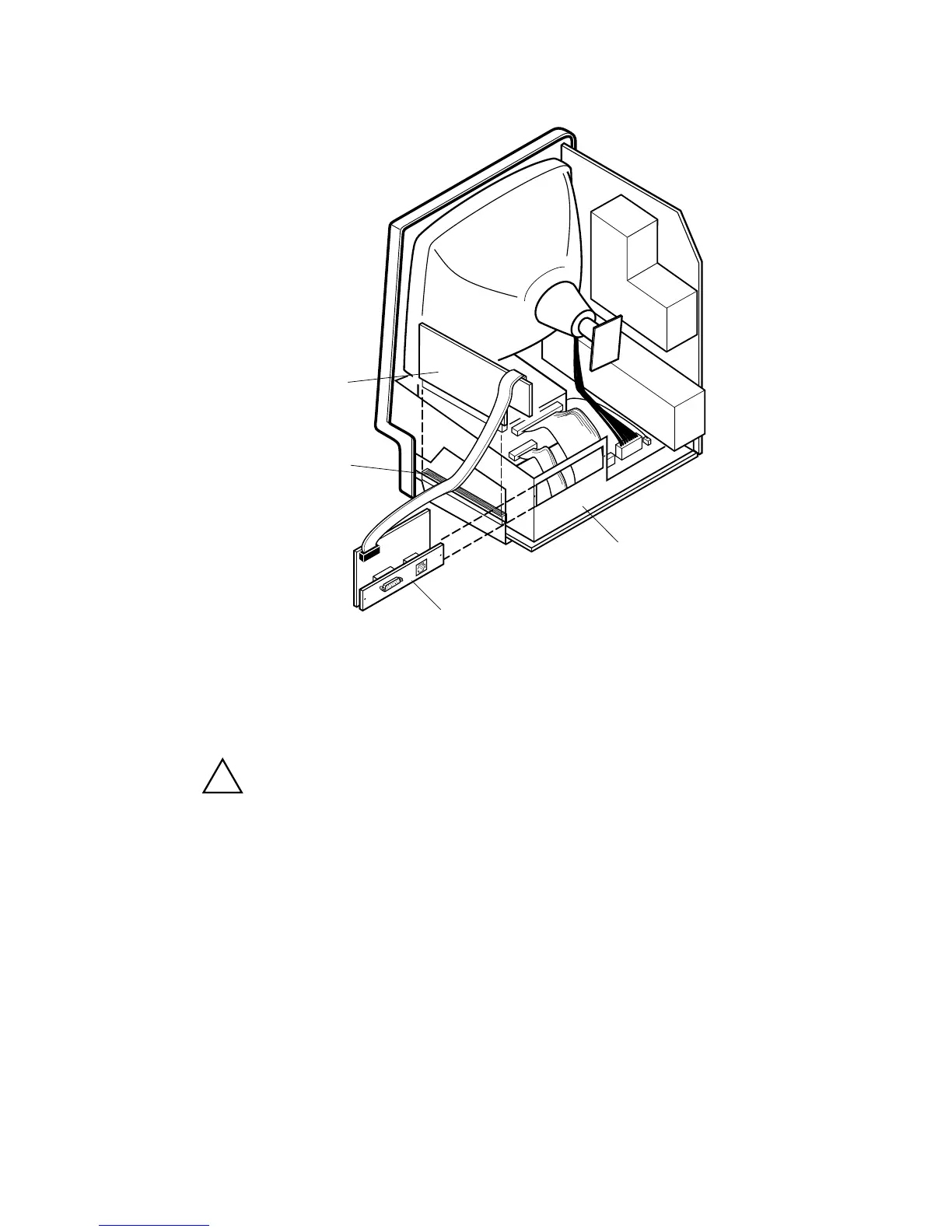

Figure 2-15
Installing a MacCon+ 30i card in a Macintosh SE/30
Installing a MacCon Card in a Macintosh SE/30
Caution
Be very careful when you open the case and work inside the Mac-
intosh SE/30. If you are unfamiliar with opening the machine, consult
a trained technician.
Do not install the Asanté Math co-processor option. It will cause the
Macintosh to fail at start up or freeze during normal operation.
To install a MacCon3 IIsi, MacCon 30iE, or MacCon 30iET card in a
Macintosh SE/30, perform the following steps:
1 Power down the Macintosh. Disconnect and remove the
power cable. Lay the Macintosh SE/30 flat on its face.
2 Open the case very carefully and remove the access port
cover.
Motherboard
Expansion slot
MacCon+ 30i
daughter card
MacCon+ 30i
controller card
