A-6 Technical Specifications

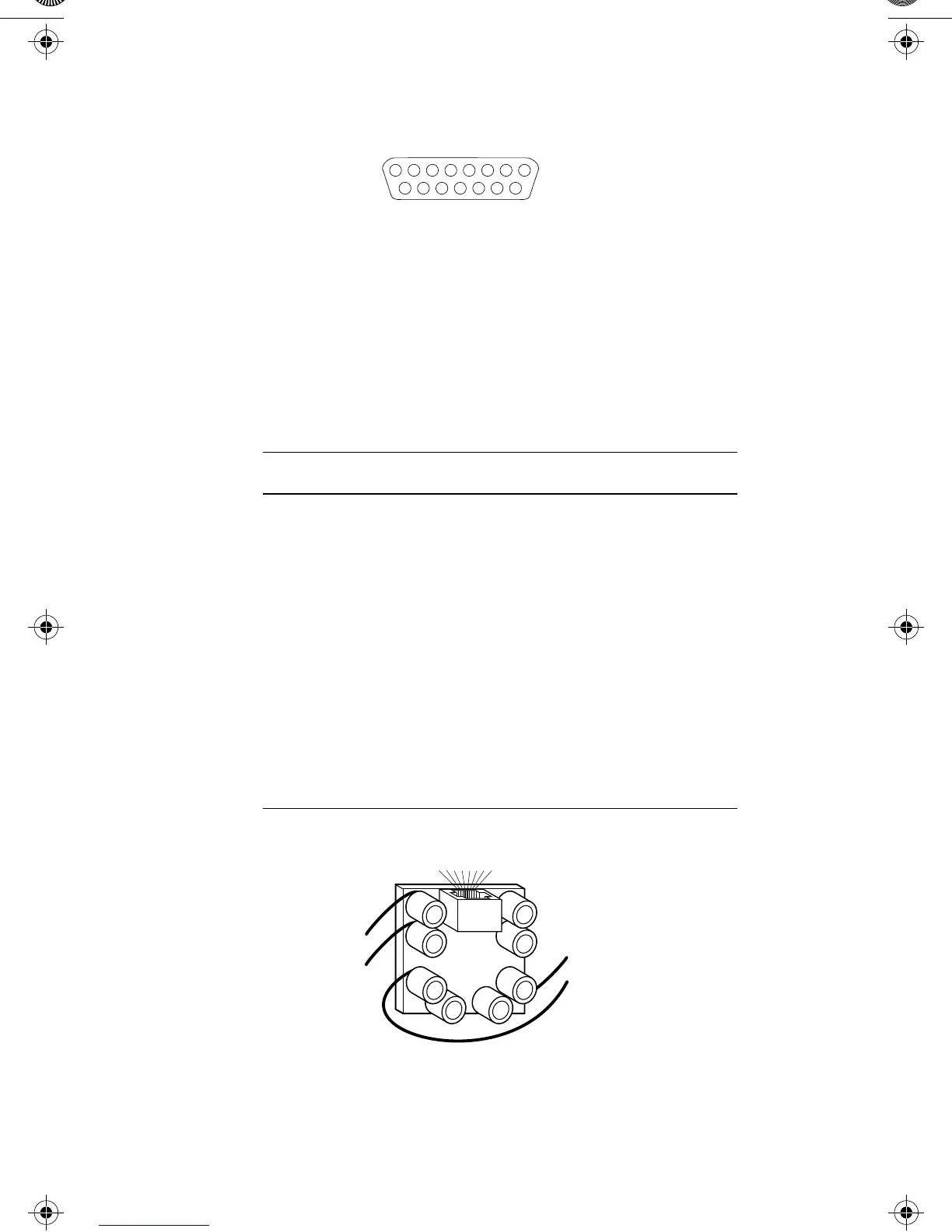

Figure B-1
AUI connector pin number assignments
RJ-45 Connector
The RJ-45 connector’s pin numbers listed below are for an Asanté
10BaseT card positioned correctly with the notch on the 8 pin mod-
ular jack oriented down. Pin 1 is the left-most pin, and Pin 8 is the
right-most pin.
Figure B-2
RJ-45 connector and biscuit block pin-outs
Pin Circuit Signal name Color code
1 TD+ Data Transmit + white-blue
2 TD– Data Transmit – blue-white
3 RD+ Data Receive + white-
orange
4 Not used
5 Not used
6 RD– Data Receive – orange-
white
7 Not used
8 Not used
8
15
7654321
14 13 12 11 10 9
4
5
7
8
1 2 3 4 5 6 7 8
RJ-45
2
1
6
3
orange-white
white-blue
blue-white
white-orange
MacConi Appendix A Page 6 Friday, August 23, 1996 10:06 AM
