2-8 Installing Asanté MacCon Cards
3
Power down the Macintosh. Disconnect and remove the
power cable.
4
Open the Macintosh and remove the access port cover.
5
Make sure you are grounded: check that your anti-static
wrist strap is properly attached to your wrist and to the
Macintosh chassis.
6
Plug the controller card (with daughter card attached) in-
to the expansion slot on the motherboard (see Figure 2-7).

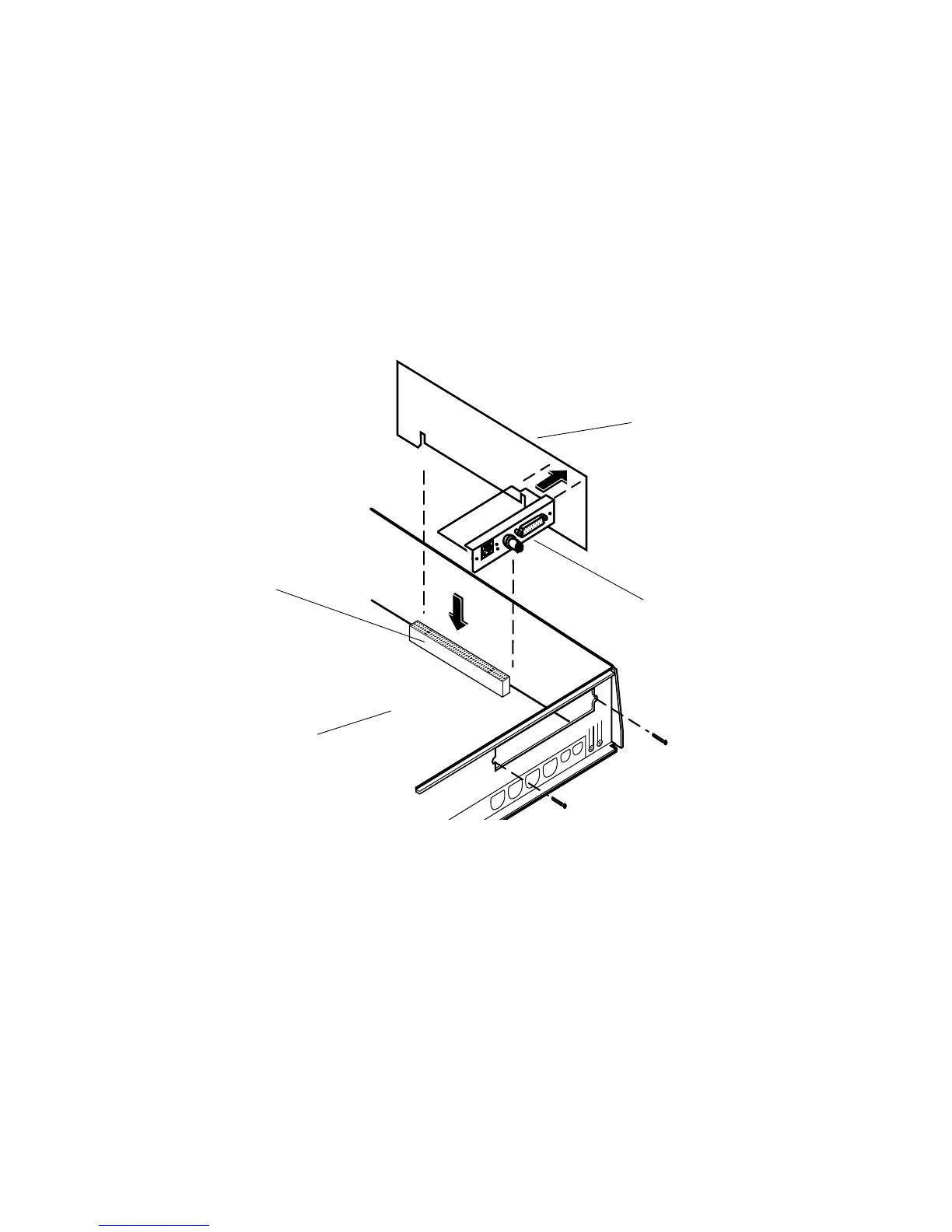

Figure 2-7
The MacCon 610 card plugged into the expan-
sion slot on the motherboard
7
Align the chassis bracket with the access port on the back
cover.
8
Secure the daughter card to the chassis using the two
screws.
9
Close the case.
10
Connect the Macintosh to the network as described in
"Connecting the Macintosh to the Network" on page 2-24.
Motherboard
Expansion slot
MacCon Centris 610
controller card
MacCon Centris 610
daughter card
