Maintenance and Service Manual Version 2.14 Page 11

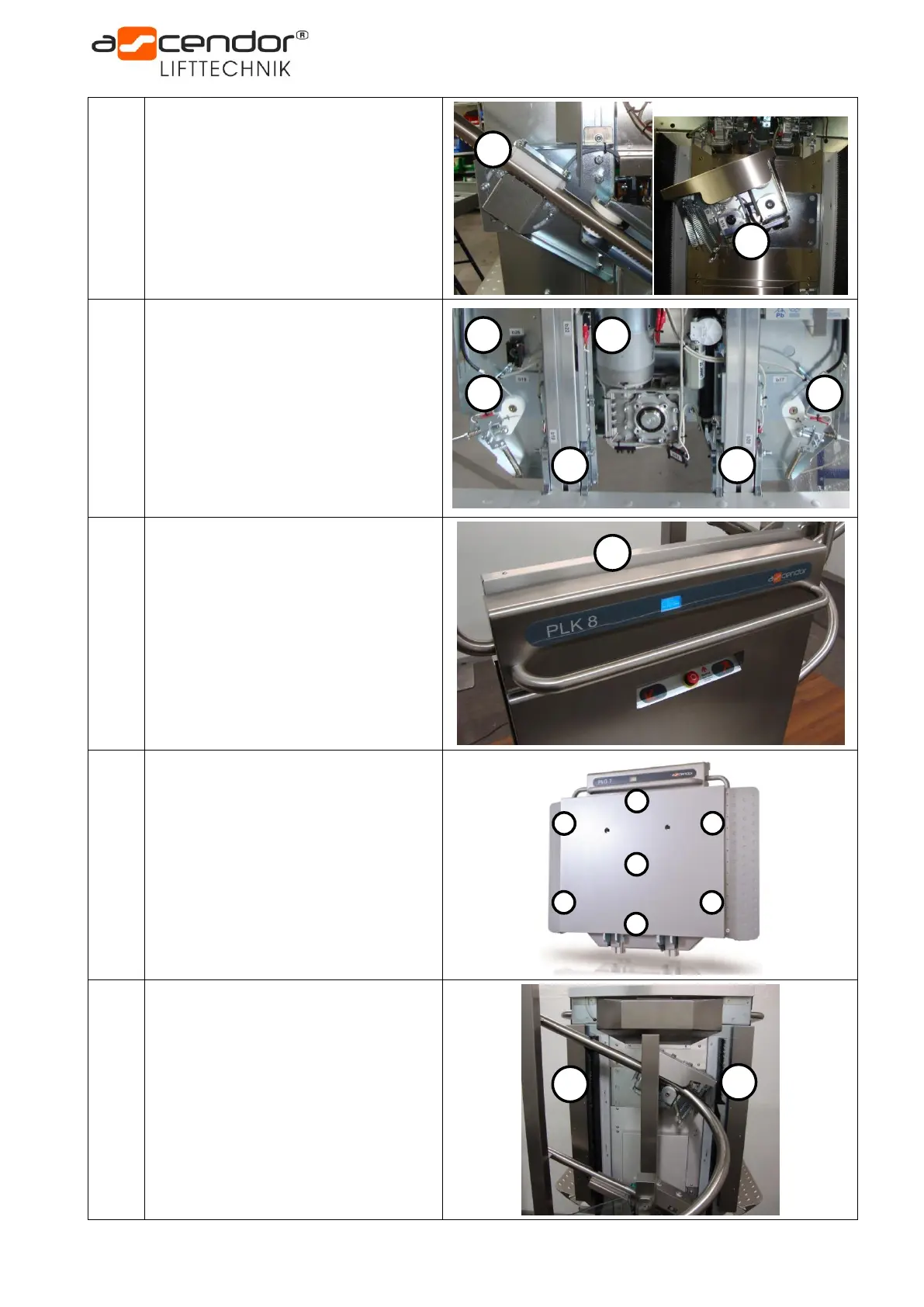

b15
1 – safety catcher PLG7
2 – safety catcher PLK8
Positioned on the back side of the lift at
PLG7 and PLK8 units
b17
b18
b19
b20
b22
b26
1 – ramp safety switch top
2 – ramp safety switch bottom
3 – platform switch up (white colour)
4 – platform switch down (black colour)
5 – weight control equipment
6 – emergency drive
Positioned behind the front plastic
cover on the bottom side near the
motor
b17.1
contact strip top
(optional)
b18.1
security contact-tray
(7 pcs. overall)
Positioned at platform underside
b17a
b18a
1 – contact strip backside PLK8, top
2 – contact strip backside PLK8, bottom
1
2
1
2
4
3
5
6
X
X
X
X
X
X
X
1
2
X
