2.3 Storage of the lift unit without a battery charge
If the lift is not installed immediately after dispatch, the batteries must be disconnected from the circuit.
Please take the lift out of the wooden transport box, then open the platform and remove the front plastic
cover (see chapter 3).
Now disconnect the battery connector (as shown in the picture on previous page).
For a long-term shutdown of an already installed lift unit, consider please chapter 7 „Electrical operation“ in
the operating manual.
3. Removal of the front plastic cover
For many service tasks its necessary to
remove the front plastic cover.
Please take these following steps:

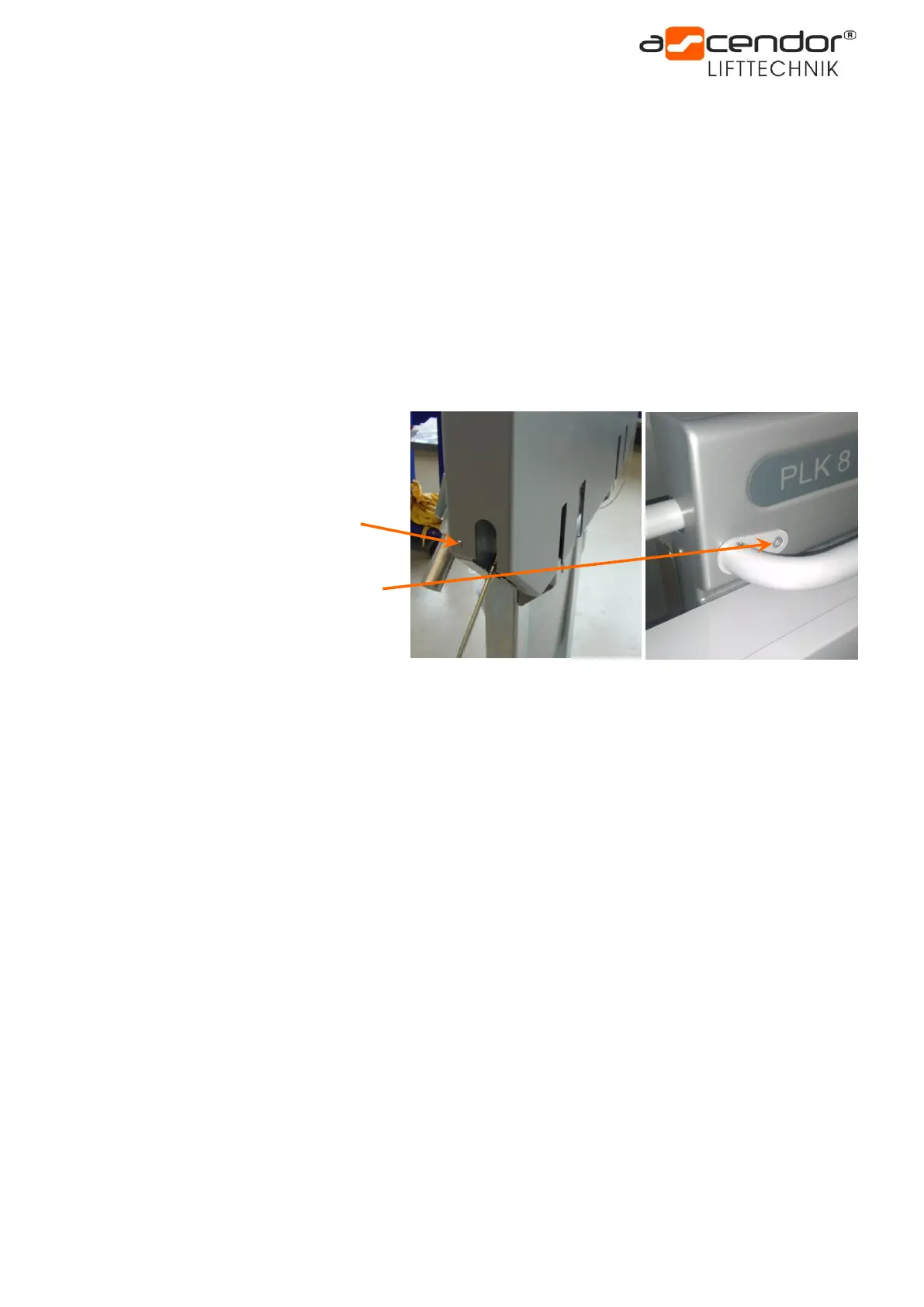

Remove the two lateral screws on the
bottom of the front plastic cover.
Remove also the two screws of the handle
bar (the handle bar is either fixed on the
front or top side of the lift).
If a folding seat is fixed to the lift, it must be also removed.
Pull now on the bottom the cover a little bit to the front and take off the cover to the top.
! A T T E N T I O N !
The cable for onboard controls is attached to the cover. Please unplug the cable at the small circuit board
before you take off the cover completely. The emergency stop button can be bridged by connecting the short
ribbon cable.
4. Service schedule
During maintenance please fulfil following checks.
4.1 Function control of handheld or wall mounted remote control
• Travel UP / DWON
• Platform open / close
• Function test of the key switch (only for wall mounted remote controls)
4.2 Function control using the onboard control
• Travel UP / DOWN
