ASCOM 21 User Manual

2
Getting startedPhone number listsDuring a callDiversionSMS/BroadcastSecurity settings
Initial steps
}Inserting the SIM card
The SIM card (Subscriber Identity Module) is
the ’plug’ to the network and provides the
mobile phone number, memory for storing
phone numbers and short text messages
(SMS).

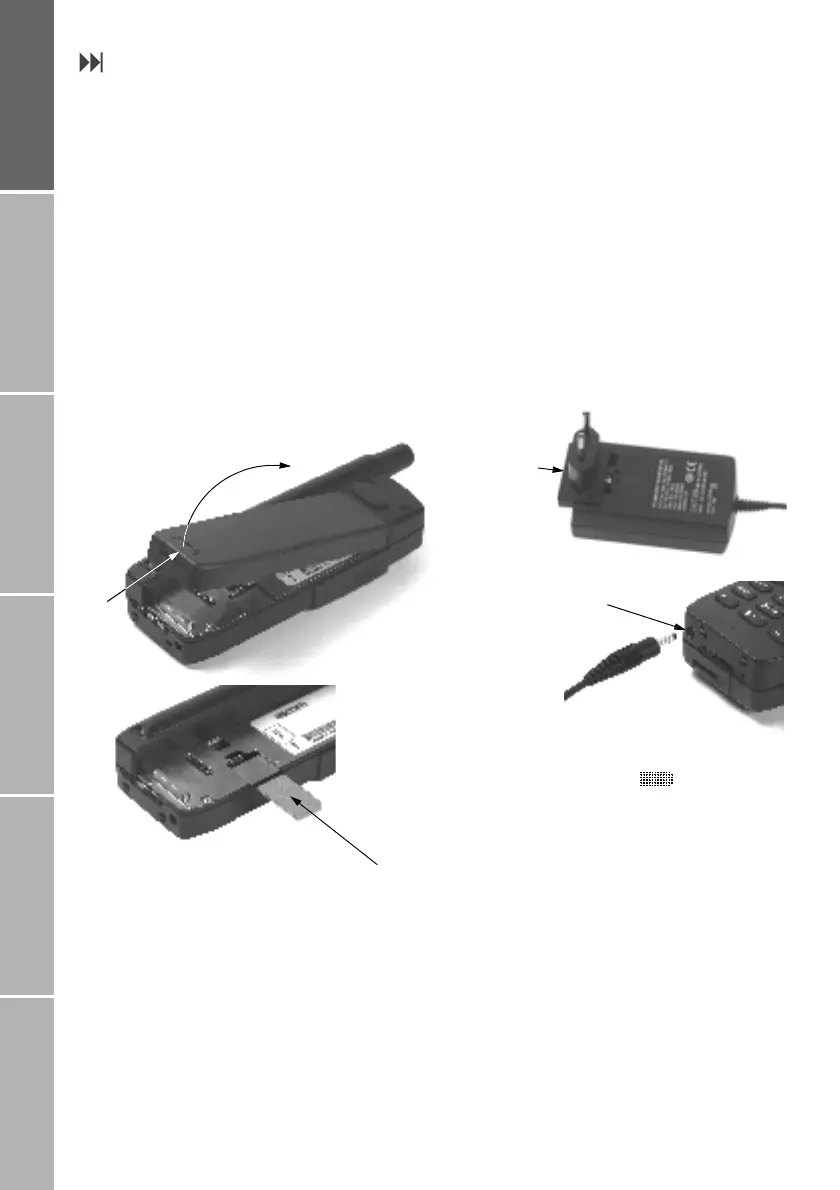

To insert the SIM card:
1. Switch off the mobile phone before re-
moving the battery and inserting the SIM
card
2. Lift the battery from the back of the mo-
bile phone and insert the SIM card as
shown in the pictures below
}Connect the charger and
charge the battery
You should charge the battery supplied with
the mobile phone as soon as possible to ob-
tain full battery charge.
To charge the battery:
1. Fit the country specific adapter into the
charger
2. Plug the charger plug into the charger
socket
3. Connect the charger to an AC source
While the battery is charging you see the
6
symbol changing to cyclically. The
battery is fully charged after 2 hours. The
charger stops charging automatically when
the battery is full. As long as the charger is
not disconnected it restarts charging after a
while to keep the battery fully charged.
Further information on using charger and
battery is given on page 57.
You may still use the mobile phone while
charging the battery.
The internal clock for time, date (see page
36) and alarms (see page 47) will still keep on
running for about one hour if neither the
battery nor the charger is connected, but no
alarm will sound unless a charged battery is
connected.
SIM card
Lift
Press
Charger plug
Charger socket
Press to fit
adapter
