ASCOM Elise3 Lite User Manual

TD 92679EN
22 November 2013 / Ver. G
Installation Guide
Elise3
6
3. Description

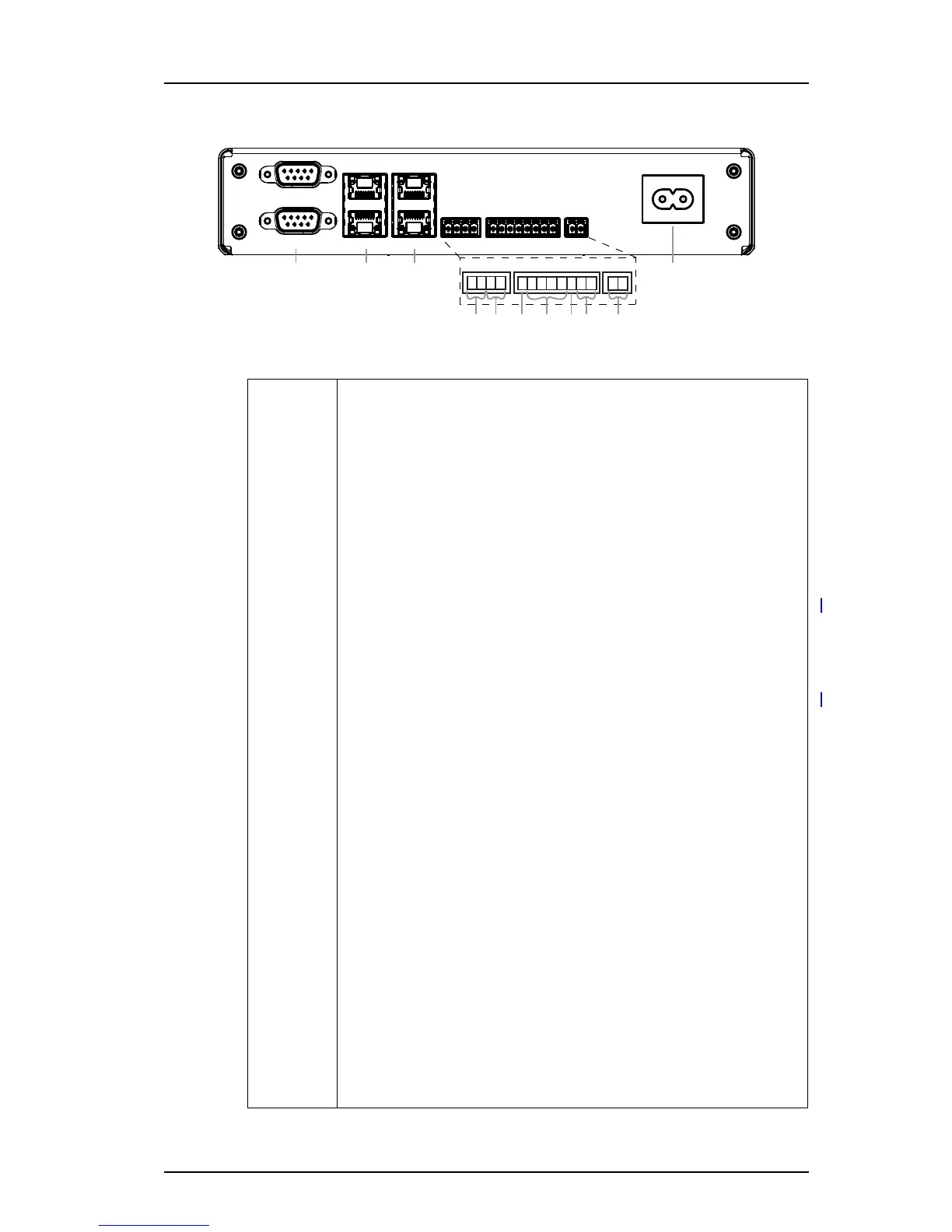

Figure 2. Rear side
+V
Ext
In
1
In
2
Out
1
Out
2
GND
Ext
Error
1 2
12-24 V DC 1A
+ -
A-bus
1 2
LON
1 2
COM 1
COM 2
LAN 1
LAN 2
S900
S900
100-240V 275mA 50-60 Hz
+V
Ext
In
1
In
2
Out
1
Out
2
GND
Ext
Error
1 2
12-24 V DC 1A
+ -
A-bus
1 2
LON
1 2
abc
de f g fh i
j
Rear side
(a) COM ports
Used for connection of RS232 communication
Note applicable for the Elise3 Lite version.
(b) LAN ports
LAN 1 is used for connection of 10baseT or 100baseT Ethernet TCP/IP
network
LAN 2 is currently not used (for future releases)
(c) S900 connections (A-bus)
Modular jacks (RJ45) used for connection of Ascom Paging System, Output
modules, and Alarm Modules with modular system bus cabling.
Not applicable for the Elise3 Lite version.
(d) A-bus
Screw connector for connection of Ascom Paging System, and Output
modules when modular system bus cable is not used. Not applicable for the
Elise3 Lite version.
(e) LON connections
Screw connector for connection of the LON bus. Applicable for the Elise3
LON version only.
(f) V+ Ext/GND Ext connections
External 12 V power supply to provide galvanic isolation of the inputs and
outputs, see below.
(g) In1/In2 and Out1/Out2 connections
Used for connection of AUX inputs and AUX outputs
(h) Error connection
Used for connection of a lamp/siren used to indicate if the product is
malfunctioning.
(i) 12-24 Vdc connection
Used for connection of external backup battery/power supply.

ASCOM Elise3 Lite Specifications

General

Brand	ASCOM
Model	Elise3 Lite
Category	Server
Language	English
