TD 92679EN
22 November 2013 / Ver. G
Installation Guide
Elise3
1
1. Introduction
1. Introduction

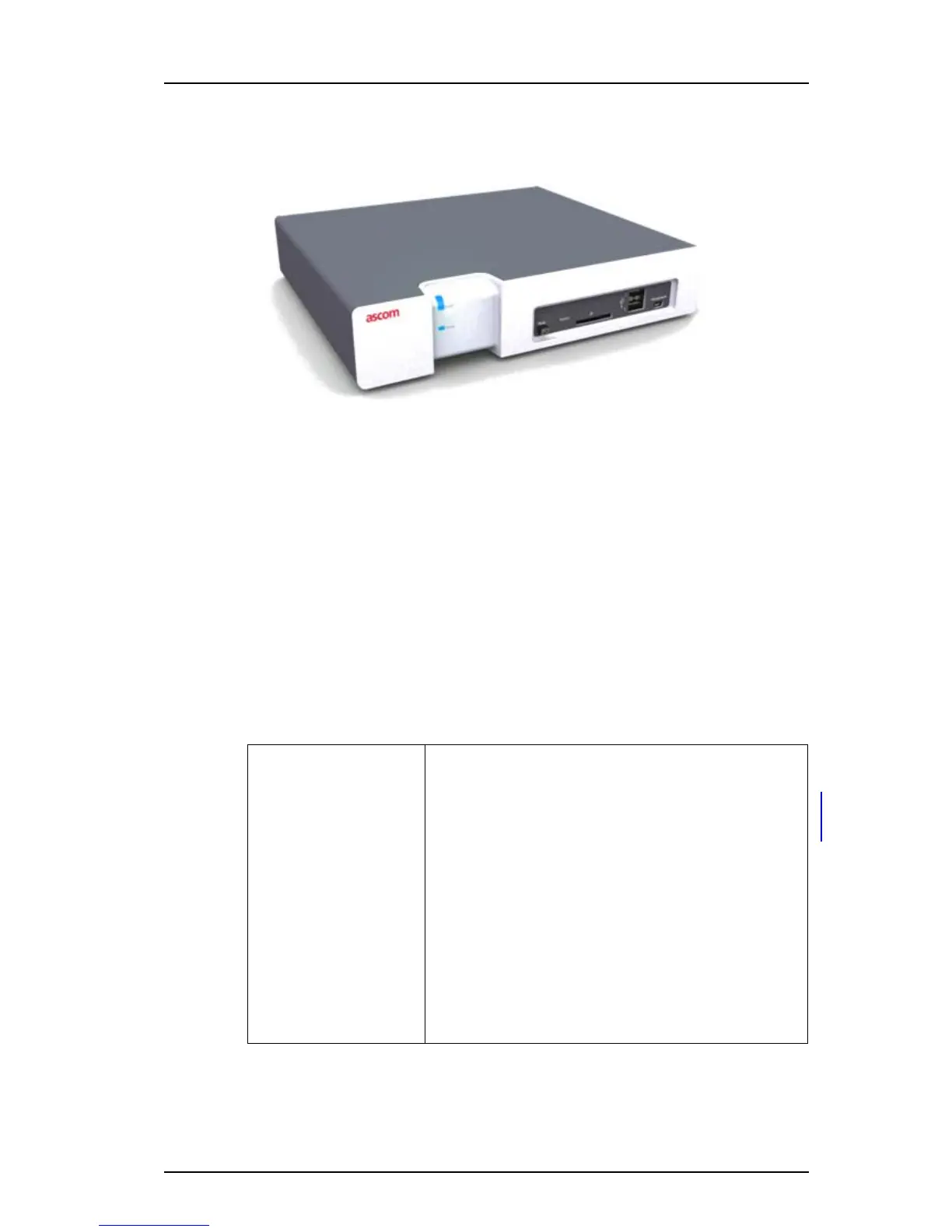

The Elise3 hardware is the platform for Linux based applications such as messaging, alarm
handling, administration and device management. The hardware can be used independently
but also works in combination with other hardware or systems.
Elise3 comes in different variants; Elise3 Lite, Elise3 Standard, Elise3 LON/ISC and Elise3
LON/NSS.
The Elise3 Lite is intended for connections via IP only. It has two LAN connections, two USB
2.0 ports for communication with external devices, one mini-USB port for easy management
and is equipped with two galvanically isolated physical inputs and outputs. The inputs can
be used for trigger conditions which in turn can use the outputs for actions.
The Elise3 Standard has the same functionality as the Lite variant, but supports A-bus
connection to Ascom paging system and RS-232 communication with external systems.
The Elise3 LON variants has the same features as the Standard variant but is equipped with
a LON piggyback for connection to teleCARE local operating network (LON) and intended for
EU/EFTA only. The Elise3 LON/ISC has a LON interface for teleCARE M and Elise3 LON/NSS for
the Nurse Station Server application.
Supply voltage: 100 – 240 Vac ±20%
12 – 24 Vdc -25% / +20%
Current consumption Max 275 mA at 100 Vac input
Max 1 A at 12 Vdc input
Max 500 mA at 24 Vdc input
Delivery includes: Elise3 hardware with pre-installed software
a
Getting started document:
ELISE3- EMBEDDED LINUX SERVER INCLUDING SAFETY
INFORMATION
Two assembly brackets
Four screws size 3.5×40 mm (0.14×1.6 in) together with four
wall plugs
Four MFT screws size M3×6 mm (0.12×0.24 in) for fastening
the assembly brackets
Power cable
Cable strain reliefs and warning labels kit
b
a. Separately ordered license certificate.
b. Product dependent.
