ASCOM H952T User Manual

TD 92022EN
3 July 2013 / Ver. G
Installation Guide
H/U952T Terminal Transmitter
8

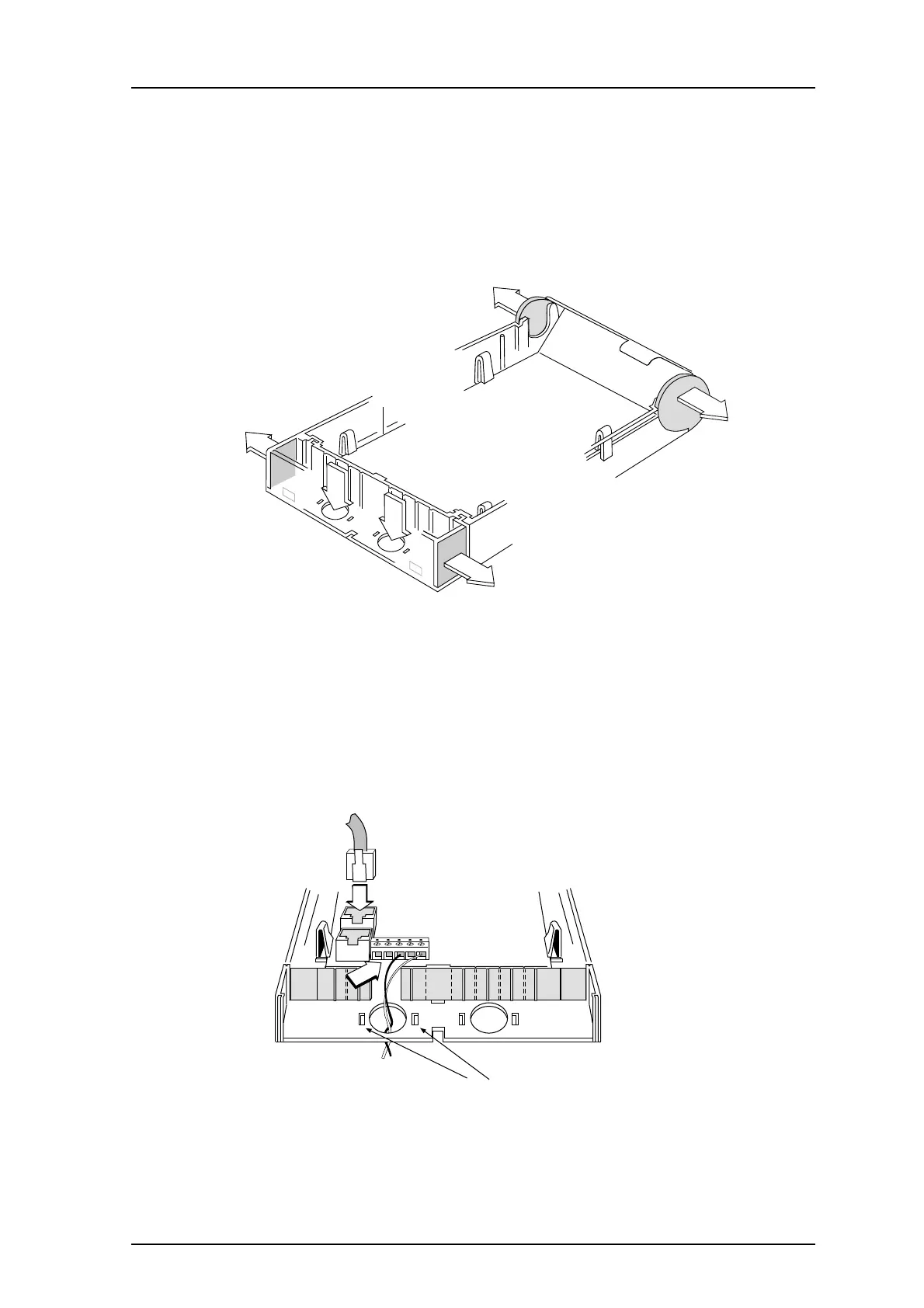

3.4 Wiring Runs
Wiring can be run three ways from the unit:
• Remove the rectangular covers and run the cabling out through the side (1).
•
Run the cabling through the round holes at the bottom of the
case (2).
• Remove the circular covers at the top of the side case (3).
1
2
1
2
3
3
IMPORTANT: Do not make any openings at the bottom of the front cover since this does
not comply with the fire enclosure requirements.
The plastic partition (shaded in the illus
tration) is scored to facilitate breaking at convenient
intervals.
1 Use pliers to break off a suitable section.
2 Run the wiring out through the cabl
e duct at the bottom.
1 2 3 4 5
slots
3 Use the slots at the opening to secure the wiring with cable straps.
