ASCOM H952T User Manual

TD 92022EN
3 July 2013 / Ver. G
Installation Guide
H/U952T Terminal Transmitter
18
Appendix B: Coaxial Connectors
This appendix applies to the following two brands of the TNC coax connector:
• TESCH TNC-30C-TGN
• Telegärtner J01010A0023
Note: The TNC coax connector images below shows the Telegärtner J01010A0023.
When connecting the antenna cable to the Terminal Tran
smitter the TNC coax connector for
soldering is preferable to use, but an TNC-UHF adapter can be ordered from your supplier if
for example the antenna cable already is equipped with a PL259 (UHF)
TNC Angle connector
TNC - UHF adapter
connector.

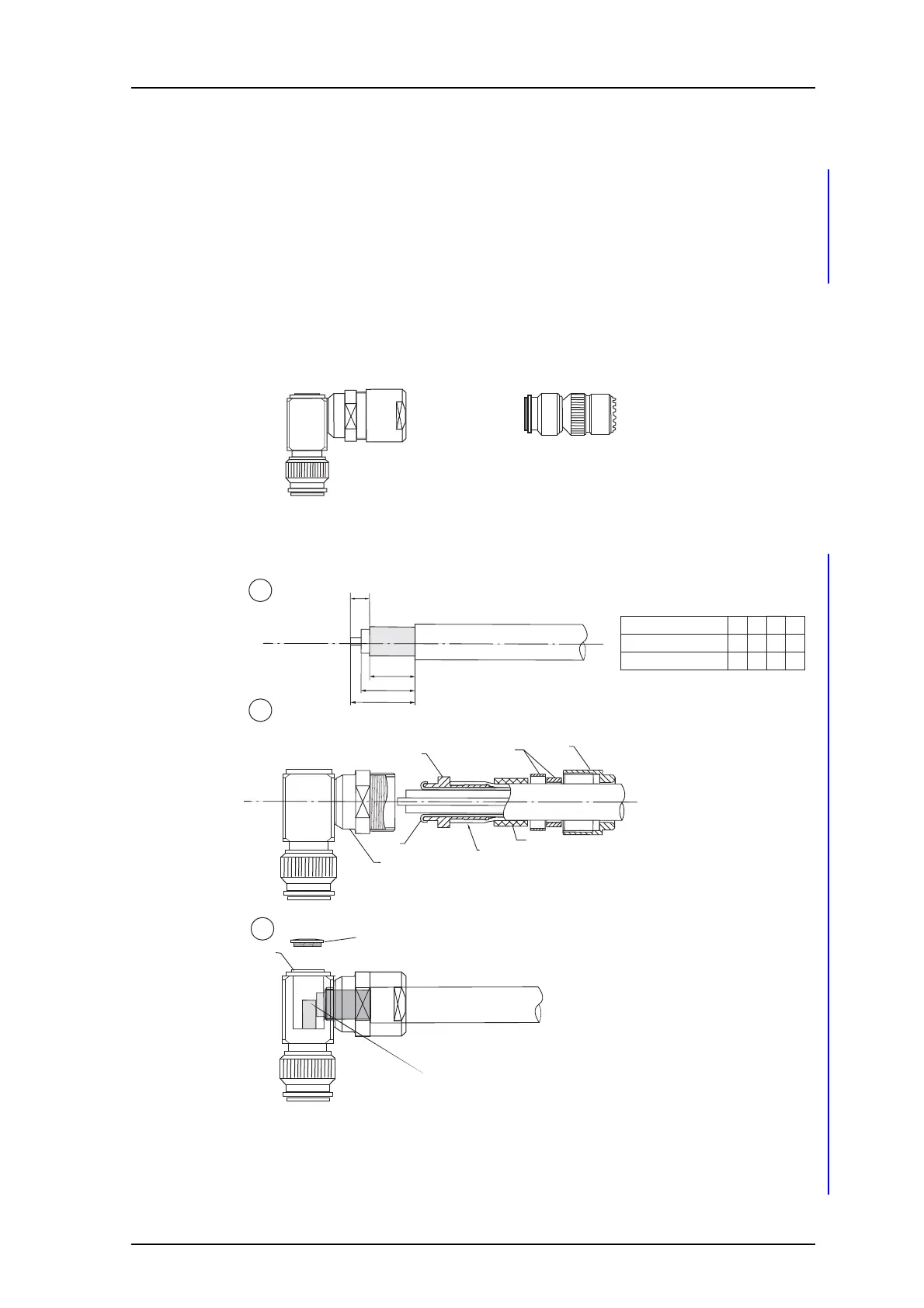

Figure 8. TNC connector and TNC-UHF adapter.
Assemb
le TNC Coax Connector as follows:
b
c
d
Washer
Braid
Housing
Shank cone
Cable sheat
Clamprings
Nut
a
Telegärtner J01010A0023
Gasket
Screw
Soldering
5.5
13.5
16
19
TESCH TNC-30C-TGN
7.1
8.3
9
15.4
a
b
c
d
1
2
3
Figure 9. Assembly of TNC coax connector.
1 Cut and strip cable as shown in figure at (1) according to the used brand of the TNC
co
ax connector.
